| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle or bulk |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |
Welded steel mesh for reinforced concrete is a welded steel mesh for reinforced concrete with reinforced concrete and cold rolled ribbed steel or cold rolled round steel. It is a good and efficient material for concrete distribution. Its emergence is of great significance to improve building con-
struction efficiency, structural quality and safety reliability, and to change traditional building construction methods.

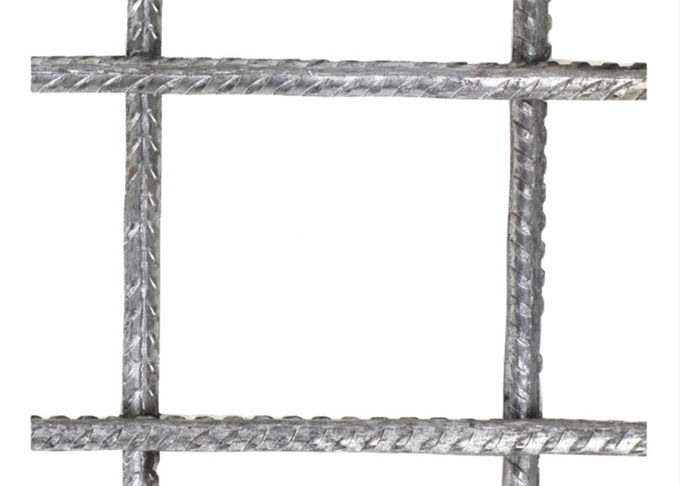

Concrete Reinforcement Welded Wire Mesh Details:
1) Cold-rolled steel ribbed rebar
2) Cold-rolled steel round rebar
3) Hot-rolled steel ribbed rebar
Rebar dia: 6mm,8mm,10mm
Width: 2200mm, 2300mm, 2400mm
Length: 5800mm, 6000mm
Mesh Hole: 100mm x100mm,150mm x150mm,200mm x200mm

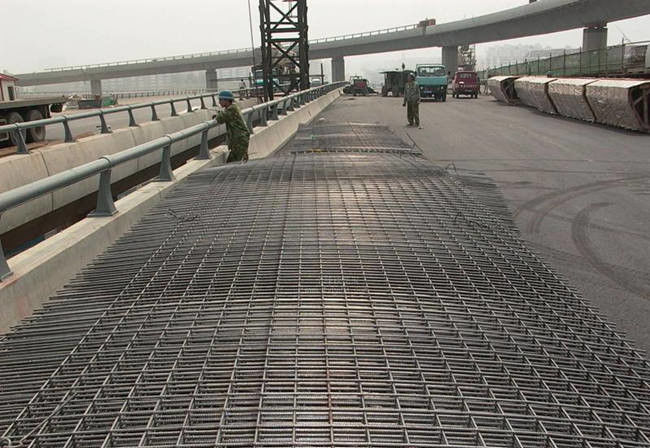

Welded steel bar panels are widely used in construction reinforcemet,the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.
FIRSTLY, GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)
| Items | Std Unit | Longitudinal
Wires(mm) |
Cross Wires(mm) | Pitch of
wire(mm) |
Mass(Kg) | Mass(Kg/m2) |
| Q131 | Sheet | 5 | 5 | 150 x 150 | 22.476 | 2.091 |
| Q188 | Sheet | 6 | 6 | 150 x 150 | 32.401 | 3.014 |
| Q221 | Sheet | 6.5/5.0 | 6.5 | 150 x 150 | 33.707 | 3.136 |
| Q295 | Sheet | 7.5/5.5 |
7.5 |
150 x 150 | 44.245 | 4.116 |
| Q378 | Sheet | 8.5/6 | 8.5 | 150 x 150 | 66.659 | 5.157 |
SECONDLY, AUSTRALIA AND NEW ZEALAND STANDARD AS/NZS 4671:2001(SIZE:6000X2400MM)
| Number | Std Unit | Longitudinal
Wires(mm) |
Edge Wires(mm) | Cross Wires(mm) | Mass(Kg) |
| SL81 (F81) | Sheet | 7.6 @ 100 | 7.60 @ 100 | 7.60 @ 100 | 105 |
| SL102 (F102) | Sheet | 9.5 @ 200 | 6.75 @ 100 | 9.50 @ 200 | 80 |
| SL92 (F92) | Sheet | 8.6 @ 200 | 6 @ 100 | 8.60 @ 200 | 66 |
| SL82 (F82) | Sheet | 7.6 @ 200 | 5.37 @ 100 | 7.60 @ 200 | 52 |
| SL72 (F72) | Sheet | 6.75@ 200 | 4.77 @ 100 | 6.75 @ 200 | 41 |
| SL62 (F62) | Sheet | 6 @ 200 | 4.77 @ 100 | 6 @ 200 | 33 |
| SL52 (F52) | Sheet | 4.77 @ 200 | 4.77 @ 100 | 4.77 @ 200 | 21 |
IN THE END, BRITISH STANDARD BS4483
| Ref No. | Std Unit | Longitudinal
Wires(mm) |
Cross Wires(mm) | Pitch of
wire(mm) |
No. of sheet
per ton |
Mass(Kg/m2) |
| A393 | Sheet | 10 | 10 | 200 x 200 | 15 | 6.16 |
| A252 | Sheet | 8 | 8 | 200 x 200 | 22 | 3.95 |
| A193 | Sheet | 7 | 7 | 200 x 200 | 29 | 3.02 |
| A142 | Sheet | 6 | 6 | 200 x 200 | 40 | 2.22 |
| A98 | Sheet | 5 | 5 | 200 x 200 | 57 | 1.54 |

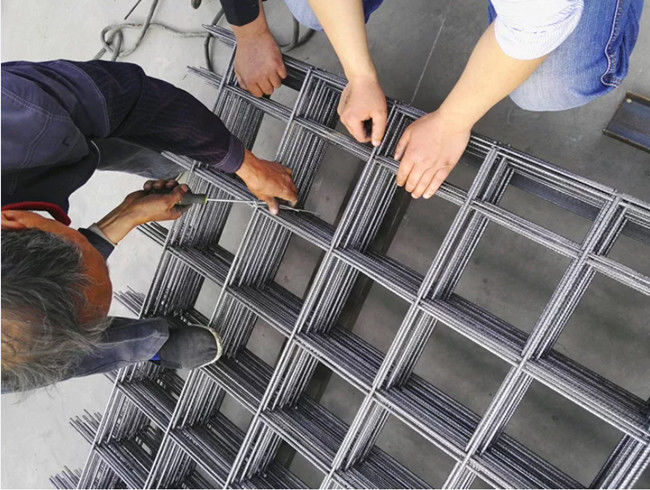

Steel bar grating costs less time and labor in work. It saves about 50 to 70 percent work time compared with common binding wire mesh. The use of bar grating can also strengthen the concrete parts to reduce surface breaking ratio. Welded bar grating for reinforcement is especially suitable for big area concrete engineering. Using of welded bar reinforcement can save about 10 percent of the total cost of the project.
|
|
