PRODUCTS DETAILS

Home > Products >

6 X 2.4 Meter Concrete Weld Mesh As / Nzs 4671 2001

Products

Concrete Reinforcement Welded Wire Mesh

Galvanized Serrated Bar Grating

Temporary Construction Fence Panel

6 X 2.4 Meter Concrete Weld Mesh As / Nzs 4671 2001

Name: 6 X 2.4 Meter Concrete Weld Mesh As / Nzs 4671 2001
Brand: HBGB
SKU: GB-005
Price: 1.00 USD
Availability: InStock
Rating: 5 (113 reviews)

MOQ:	100pcs
Price:	negotiable
Standard Packaging:	in bundle or bulk
Delivery Period:	10-20 days
Payment Method:	L/C, T/T
Supply Capacity:	3000 pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HBGB

Certification

ISO 9001

Model Number

GB-005

Product Name:

Reinforcing Concrete Welded Wire Mesh

Process Of Mesh:

Welded

Surface Treatment:

Without Treatment

Ribbed Bar:

Cold Rolled Ribbed Bars

Spacing:

100 ~ 250 Mm

Diameter Of Rod:

Ø6 ~ Ø13

Mesh Dimension:

6x2.4m

Trader Or Factory:

Factory

Usage:

Retaining And Shear Walls

Standard:

Australian/New Zealand Standard -AS/NZS 4671:2001

Minimum Order Quantity:

100pcs

Price:

negotiable

Packaging Details:

in bundle or bulk

Delivery Time:

10-20 days

Payment Terms:

L/C, T/T

Supply Ability:

3000 pcs per day

High Light:

6 x 2.4 meter concrete weld mesh

nzs 4671 2001 concrete weld mesh

as concrete reinforcement welded wire mesh

Product Description

6 X 2.4 Meter AS/NZS 4671:2001 Concrete Reinforcing Welded Wire Mesh

Concrete Reinforcement Welded Wire Mesh Description:

Concrete Reinforcing Mesh also known as steel reinforcing mesh, welded wire fabric, ribbed steel bars welded mesh and so on. Be made from cold reduced Wire or cold rolled ribbed bars(CRB550) , It is in the same or different diameters of the vertical and horizontal steel bars , and has a rectangular or square apertures and is produced in flat sheets.

It is used to provide tensile strength and crack control to structural concrete elements.

Concrete Reinforcement Welded Wire Mesh Details:

Wire diameter	6mm-26mm
Material	Low carbon steel rod
Length	According to your reques
Width	According to your reques
Usage	Road, bridge and tunnel,building
Hole shape	Rectangle,Square
Mesh opening	1010 1515 20*20(mm)
Features	High tension strength

Applications of Concrete Reinforcement Welded Wire Mesh:

Retaining and shear walls
Beams and columns
Concrete paving overlays
Precast concrete elements
Suspended floor slabs
Swimming pool and gunite construction

Concrete Reinforcement Welded Wire Mesh Specifications:

Square Mesh AS/NZS 4671- Class L

Product Code	Std Unit	Longitudinal Wires	Cross Wires	Mass(kg)	Dimensions(m)
SL52	sheet	10×4.77@200+4×4@100	30×4.77@200	21	6×2.4
SL62	sheet	10×6@200+4×4.77@100	30×6@200	33	6×2.4
SL72	sheet	10×6.75@200+4×4@100	30×6.75@200	41	6×2.4
SL81	sheet	25×7.6@100	60×7.6@200	105	6×2.4
SL82	sheet	10×7.6@200+4×5.37@100	30×7.6@200	52	6×2.4
SL92	sheet	10×8.6@200+4×6@100	30×8.6@200	66	6×2.4
SL102	sheet	10×9.5@200+4×6.75@100	30×9.5@200	80	6×2.4
×Diameter (mm) × Spacing (mm)

Advantages of concrete reinforcement welded wire mesh:

Shorten implementation time; thereby gaining economic advantages
Replace manual production with higher productivity
Customize in accordance with customers requests
Reduce losses and quality deterioration of steel materials
Ensure the progress of projects
Enhance the ease of transportation, installation and replacement

Pictures of product:

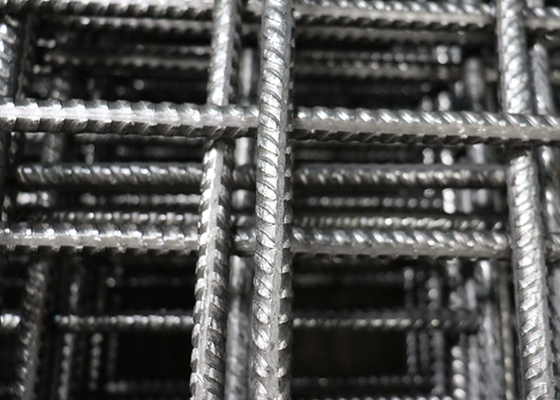

6 X 2.4 Meter Concrete Weld Mesh As / Nzs 4671 2001 0

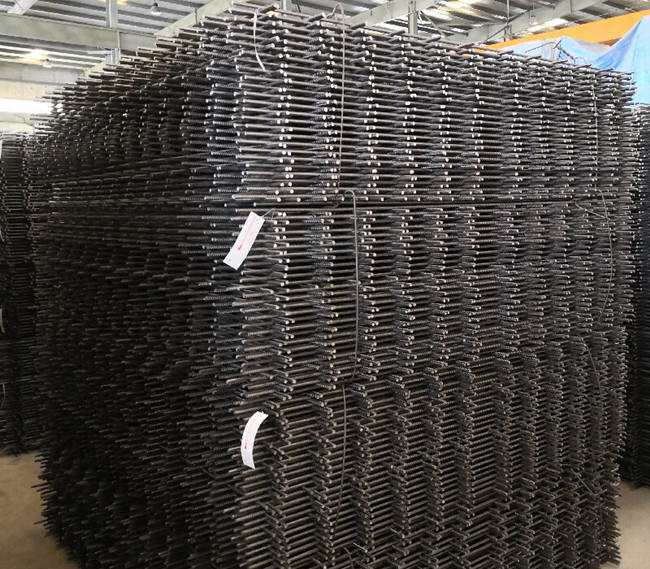

6 X 2.4 Meter Concrete Weld Mesh As / Nzs 4671 2001 1
