| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle or bulk |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |

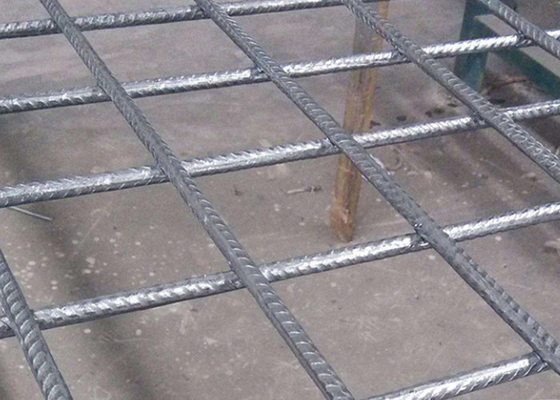

Concrete Reinforcing Welded Wire Mesh Description:

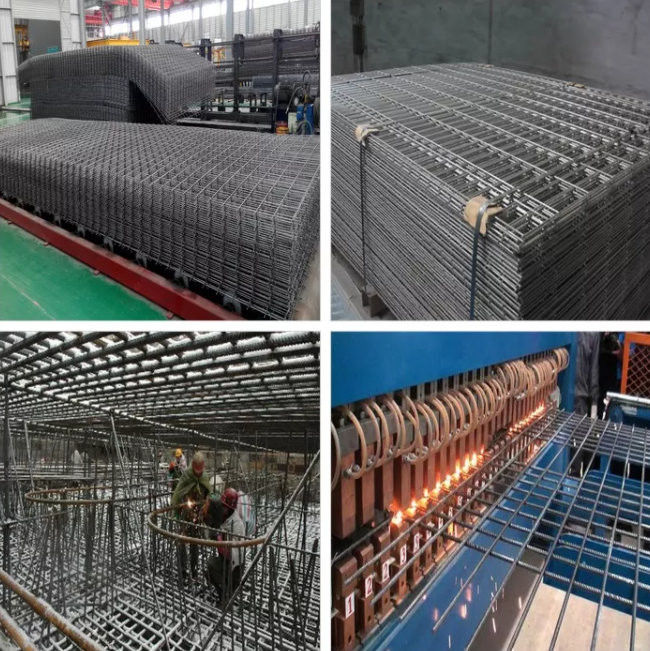

Reinforcing welded wire mesh is made up of reinforcing wires welded at the intersection spots, which does not disturb the structure of the metal. It's easier to move and laid in concrete, and the mesh still holds its shape. With the high strength and good stability, it's widely used for road reinforcement and concrete structure reinforcement in building.
Concrete Reinforcing Welded Wire Mesh Detailed Information:
|
Product Name
|
Concrete Welded Wire Mesh/Welded Reinforcing Rib Mesh
|
||
|
Material:
|
Low carbon steel, Q195,Q235 etc.
|
Wire diameter:
|
3-16mm
|
|
Length:
|
1m-12m or custom
|
Width:
|
0.5m-3m or custom
|
|
Hole shape:
|
Rectangle, Square
|
Mesh opening:
|
100--400mm or custom
|
|
Applications:
|
widely used in construction reinforcemet,the ground for the tunnels, bridges, highway, airport and wharf, also in construction
of wall body. |
||
Theoretical weight of welded reinforcement mesh (KG) = length of reinforcement used in reinforcement mesh (M) * wire diameter(MM)* wire diameter (MM) * 0.00617 (φ10 reinforcement 0.616539kg / m)
1. To advance the quality of engineering;
2. Improve the function of concrete anti-seismic and crack resistance;
3. Reduce the amount of steel usage;
4. High operating effciency.
| Concrete Reinforcing Mesh | ||||
SQUARE MESH6m X 2.4m Sheets |
Code |
Longitudinal Wires: Number x Size (mm) @ Pitch (mm) |
Cross Wires: Number x Size (mm) @ Pitch (mm) |
Approx Mass Kg/Sheet |
| SL52 |
10 x 4.77mm @ 200mm +4 x 4.00mm @ 100mm |
30 x 4.77mm @ 200mm | 21kg | |
| SL62 |
10 x 6.00mm @ 200mm +4 x 4.77mm @ 100mm |
30 x 6.00mm @ 200mm | 33kg | |
| SL72 |
10 x 6.75mm @ 200mm +4 x 4.77mm @ 100mm |
30 x 6.75mm @ 200mm | 41kg | |
| SL82 |
10 x 7.60mm @ 200mm +4 x 5.37mm @ 100mm |
30 x 7.60mm @ 200mm | 52kg | |
| SL92 |
10 x 8.60mm @ 200mm +4 x 6.00mm @ 100mm |
30 x 8.60mm @ 200mm | 66kg | |
| SL102 |
10 x 9.50mm @ 200mm +4 x 6.75mm @ 100mm |
30 x 9.50mm @ 200mm | 80kg | |
| SL81 | 25 x 7.60mm @ 100mm | 60 x 7.60mm @ 100mm | 105kg | |
TRENCH MESH6m Sheets |
Code |
Longitudinal Wires: Number x Size (mm) @ Pitch (mm) |
Cross Wires: Number x Size (mm) @ Pitch (mm) |
Approx Mass Kg/Sheet |
| L8TM3 | 3 x 7.60mm @ 100mm | 4.77mm @ 300mm | 7kg | |
| L8TM4 | 4 x 7.60mm @ 100mm | 4.77mm @ 300mm | 9kg | |
| L8TM5 | 5 x 7.60mm @ 100mm | 4.77mm @ 300mm | 11kg | |
| L11TM3 | 3 x 10.65mm @ 100mm | 4.77mm @ 300mm | 13kg | |
| L11TM4 | 4 x 10.65mm @ 100mm | 4.77mm @ 300mm | 18kg | |
| L11TM5 | 5 x 10.65mm @ 100mm | 4.77mm @ 300mm | 22kg | |
| L12TM3 | 3 x 11.90mm @ 100mm | 4.77mm @ 300mm | 16kg | |
| L12TM4 | 4 x 11.90mm @ 100mm | 4.77mm @ 300mm | 22KG | |
| L12TM5 | 5 x 11.90mm @ 100mm | 4.77mm @ 300mm | 27KG |
RECTANGULAR MESH6m x 2.4m Sheets |
Code |
Longitudinal Wires: Number x Size (mm) @ Pitch (mm) |
Cross Wires: Number x Size (mm) @ Pitch (mm) |
Approx Mass Kg/Sheet |
| RL718 | 25 x 6.75mm @ 100mm | 30 x 7.00mm @ 200mm | 68kg | |
| RL818 | 25 x 7.60mm @ 100mm | 30 x 7.00mm @ 200mm | 79kg | |
| RL918 | 25 x 8.55mm @ 100mm | 30 x 7.00mm @ 200mm | 93kg | |
| RL1018 | 25 x 9.50mm @ 100mm | 30 x 7.00mm @ 200mm | 109kg | |
| RL1118 | 25 x 10.65mm @ 100mm | 30 x 7.00mm @ 200mm | 131kg | |
| RL1218 | 25 x 11.90mm @ 100mm | 30 x 7.00mm @ 200mm | 157 |
Retaining and shear walls
Beams and columns
Concrete paving overlays
Precast concrete elements
Suspended floor slabs
Swimming pool and gunite construction
|
|
