| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle or bulk |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |
Concrete Reinforcement Welded Wire Mesh Introduction:
Concrete Reinforcement Welded Wire Mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square reinforcement mesh grid pattern and is produced in flat sheets.
Reinforcing Concrete Mesh is a multi-purpose steel reinforcing mesh, which is suitable for the use of more structural building slabs and footing. It consisted of a series of high-strength wires welded together to form a square or rectangular grids fabric.
1.Reinforcing mesh Material:
1)Cold-rolled steel ribbed rebar
2)Cold-rolled steel round rebar
3)Hot-rolled steel ribbed rebar
2.Reinforcing mesh Wire diameter: 5mm to 16mm.
3.Reinforcing mesh Opening: 75mm to 300mm.
4.Panel length: 100cm to 1400cm.
5.Panel width: 100cm to 300cm.
Steel bar grating costs less time and labor in work. It saves about 50 to 70 percent work time compared with common binding wire mesh. The use of bar grating can also strengthen the concrete parts to reduce surface breaking ratio.

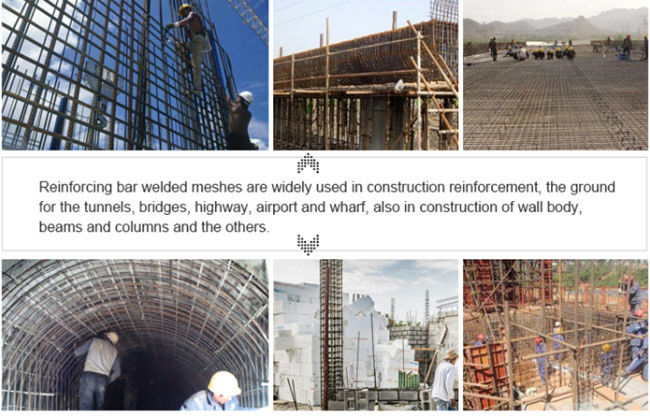

Welded bar grating for reinforcement is especially suitable for big area concrete engineering. Using of welded bar reinforcement can save about 10 percent of the total cost of the project.
· Concrete footpaths
· Industrial and commercial ground slabs
· Precast Panel construction
· Residential slabs and footings
Concrete Reinforcement Welded Wire Mesh Specifications:
1) German standard DIN 488( Size: 2150x5000mm)
| Ref No. | Std Unit | Longitudinal Wires(mm) | Cross Wires(mm) | Pitch of wire(mm) | Mass(Kg) | Mass(Kg/m2) |
| Q131 | Sheet | 5 | 5 | 150 @ 150 | 22.476 | 2.091 |
| Q188 | Sheet | 6 | 6 | 150 @ 150 | 32.401 | 3.014 |
| Q221 | Sheet | 6.5/5.0 | 6.5 | 150 @ 150 | 33.707 | 3.136 |
| Q295 | Sheet | 7.5/5.5 | 7.5 | 150 @ 150 | 44.245 | 4.116 |
| Q378 | Sheet | 8.5/6 | 8.5 | 150 @ 150 | 66.659 | 5.157 |
2) Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400m)
| Ref No. | Std Unit | Longitudinal Wires(mm) | Edge Wires(mm) | Cross Wires(mm) | Mass(Kg) |
| SL81 (F81) | Sheet | 7.6 @ 100 | 7.60 @ 100 | 7.60 @ 100 | 105 |
| SL102 (F102) | Sheet | 9.5 @ 200 | 6.75 @ 100 | 9.50 @ 200 | 80 |
| SL92 (F92) | Sheet | 8.6 @ 200 | 6 @ 100 | 8.60 @ 200 | 66 |
| SL82 (F82) | Sheet | 7.6 @ 200 | 5.37 @ 100 | 7.60 @ 200 | 52 |
| SL72 (F72) | Sheet | 6.75 @ 200 | 4.77 @ 100 | 6.75 @ 200 | 41 |
| SL62 (F62) | Sheet | 6 @ 200 | 4.77 @ 100 | 6 @ 200 | 33 |
| SL52 (F52) | Sheet | 4.77 @ 200 | 4.77 @ 100 | 4.77 @ 200 |
21
|

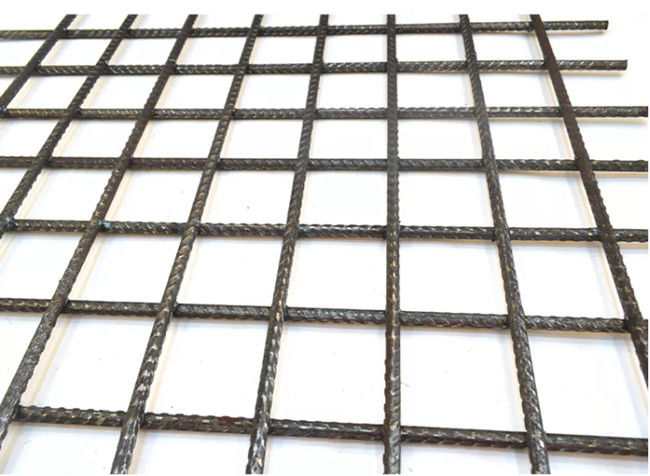

Pictures of product:
|
|
