| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | bulk packing, in bundle or by pallet |
| Delivery Period: | 15-25days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |

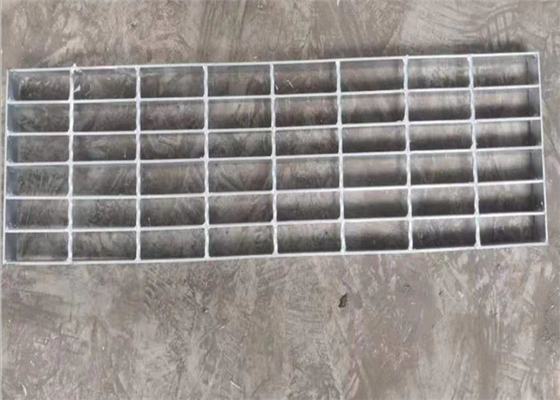

Steel Grating made by welding with flat steel and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.
Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating.
As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on.
We do custom manufacture and can supply a high quality OEM service for clients.
Plain bar grating specifications:
| Item | Description |
| Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, hot dipped galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard |
China: YB/T 4001.1-2007, Australia: AS1657-1985, Japan :JIS |
China: YB/T 4001.1-2007,
USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987,
Australia: AS1657-1985,
Germany: DIN24537-1-2006,
Japan :JIS
Product:
Application of steel bar grating:
Steel grating can be widely used in various industrial buildings, such as metallurgy, building materials, power stations, boilers, ship building, , municipal construction, etc.
|
|
