50x100mm Y Post Airport 358 Security Fence Bto22 Pvc Coated With Razor Barbed Wire
  • name
  • name

50x100mm Y Post Airport 358 Security Fence Bto22 Pvc Coated With Razor Barbed Wire

MOQ: 50sets
Price: negotiable
Standard Packaging: Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside
Delivery Period: 10-20days
Payment Method: L/C, T/T
Supply Capacity: 500 sets per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HBGB
Certification
ISO 9001
Model Number
GB-0011
Product Name:
Anti Climb Airport Fence
Raw Material:
Fence Panel + Razor Barbed Wire
Wire Gauge:
3.0mm~6.0mm
Mesh Size:
50mm X 100mm, 50mm X 150mm, 50mm X 200mm
Feature:
Strong Security
Application:
For Prison, Airport, Railway Station
Post Shape:
Y Shaped
Post Length:
1.9-3.6m
Post Size:
60*60 Square Post
Post Thickness:
2.0, 2.5mm
Minimum Order Quantity:
50sets
Price:
negotiable
Packaging Details:
Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside
Delivery Time:
10-20days
Payment Terms:
L/C, T/T
Supply Ability:
500 sets per day
Highlight:

y post no climb security fence

,

pvc coated 358 security fence

,

airport 358 security fence

Product Description

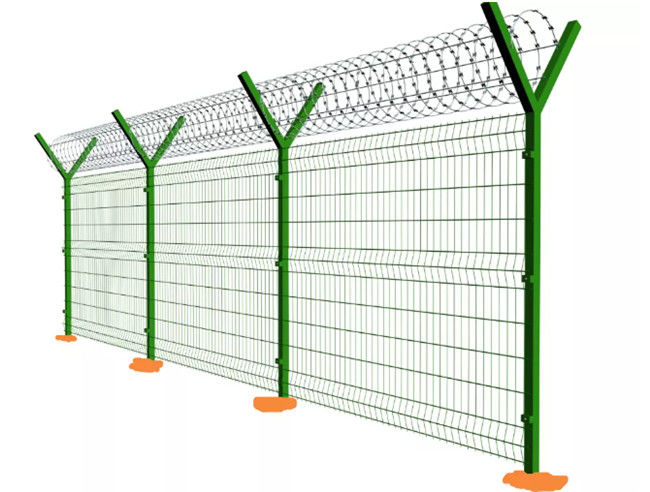

Anti Climb Y Post PVC Coated Airport Fence With Razor Barbed Wire





Anti climb airport fence description:



Airport Fence is also known as Y-Shape Security Fence. It is strengthened by the V-shaped support arm and welded mesh panel or chain link fence, security fittings and hot-dip galvanized concertina razor mesh to form a high level of strength and security.

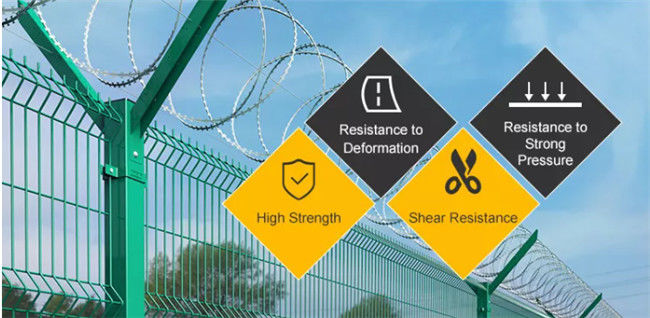

Features of Anti climb airport fence:

1. resistance to strong pressure
2. shear resistance
3. resistance to deformation
4. High strength
5. Anti climb




50x100mm Y Post Airport 358 Security Fence Bto22 Pvc Coated With Razor Barbed Wire 0



Anti climb airport fence specification:

1. Airport Fence Panel Common Specifications





Panel
Mesh
Wire ThicknessSurface TreatmentPanel WidthFolds NOS.
Panel
Height
Fence Height
Big Panel
50x100mm
55x100mm
4.00mm
4.50mm
5.00mm
Galvanized and
Electrostatic polyester
coated or PVC coated
2.50m
3.00m
4
2000mm2700mm
52300mm3200mm
62600mm3700mm
V panel2530mm2700mm
2630mm3200mm
2730mm3700mm



2. Y Post Common Specifications



Profile
Wall Thickness
Surface Treatment
Length
Base Plate
Rainhat
60x60mm
2.0mm
2.5mm
Galvanized and
Electrostatic polyester powder coated
1900mm /
+400mm I
Available
on request
Plastic or Metal
2200mm /
+500mm I
2500mm /
+500mm I

Profile
Wall Thickness
Surface Treatment
Length
Base Plate
Rainhat
60x60mm
2.0mm
2.5mm
Galvanized and
Electrostatic polyester powder coated
2700mm I
+550mm V
Available
on request
Plastic or Metal
3100mm I
+650mm V
3600mm I
+750mm V



3. Razor Wire Common Specifications

Type
Core wire /Blade thicknessSurface TreatmentLengthOut side diameterClips
BTO-222.5/0.5mmHot dipped galvanized8-10m/roll
500mm
3 lines
600mm
700mm



Application of airport fence:


1. Prison security fencing;
2. Store anti-climb guarding;
3. Airport security fencing;
4. Factory machine guards;
5. Walkway security fencing;
6. Psychiatric hospital security fencing;



50x100mm Y Post Airport 358 Security Fence Bto22 Pvc Coated With Razor Barbed Wire 1
