Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence

Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence

MOQ: 50 rolls
Price: negotiable
Standard Packaging: 1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton
Delivery Period: 10 - 20 days
Payment Method: L/C, T/T
Supply Capacity: 2000 rolls per day
Detail Information
Place of Origin
China
Brand Name
HBGB
Certification
ISO 9001
Model Number:
BTO -10, BTO -12, BTO-18, BTO-22, CBT-60, CBT-65
Product Name:
Razor Barbed Wire
Material:
Carbon Steel Wire
Surface Treatment:
PVC Coated
Color:
Green Or Customized
Coil Diameter:
450,500,600,700,800,900,960,980 Mm
Core Wire:
2.5mm
Cover Length:
Customized
Feature:
Anti Climb
Application:
Prison Fence
Minimum Order Quantity:
50 rolls
Price:
negotiable
Packaging Details:
1) compression rolls, 5 rolls, 10 rolls, or more rolls as one bundle 2) 1 roll, 3 rolls or 5 rolls in one carton
Delivery Time:
10 - 20 days
Payment Terms:
L/C, T/T
Supply Ability:
2000 rolls per day
High Light:

pvc coated coils of barbed wire

,

anti climb coils of barbed wire

,

security fence anti climb barbed wire

Product Description

Green Red Pvc Coated Galvanized Security Fence Razor Barbed Wire





Razor barbed wire introduction:



Concertina wire or Dannert Wire is a type of barbed wire or razor wire that is formed in large coils which can be expanded like a concertina. In conjunction with plain barbed wire (and/or razor wire/tape) and steel pickets, it is most often used to form military-style wire obstacles such as when used in prison barriers, detention camps or riot control.

Razor barbed wire kinds:



Blade Specification Blade Forms Blade Thickness Core Wire Dia. Blade Length Blade Width Blade Space
BTO-10   0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12   0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18   0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22   0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28   0.5±0.05 2.5 28 15 45±1
BTO-30   0.5±0.05 2.5 30 18 45±1
CBT-60   0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65   0.6±0.05 2.5±0.1 65±2 21±1 100±2

Ex. Dia. No. of Turns Standard Covering Length Production Model Remarks
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-12.18.22 Cross type
600mm 86 14M BTO-12.18.22 Cross type
700mm 72 12M BTO-12.18.22 Cross type
800mm 64 10M BTO-12.18.22 Cross type
960mm 52 9M BTO-12.18.22 Cross type

Application

It can fix on the wire mesh fence that adds high security.



Razor barbed wire applications:

Razor wire mesh fence has been widely used in many countries ,industrial and minning enterprises , garden apartments, border posts ,the millary field , prisons, detention centers ,government buildings and other national security facilities.

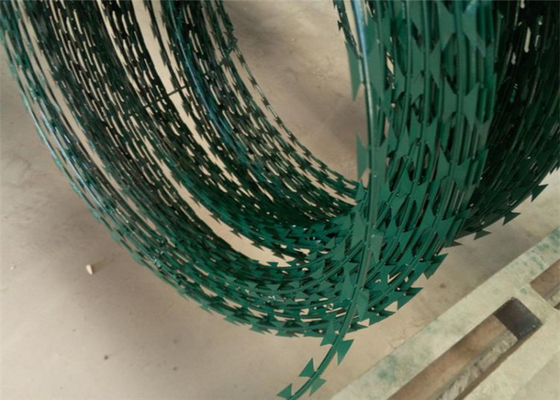

Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence 0

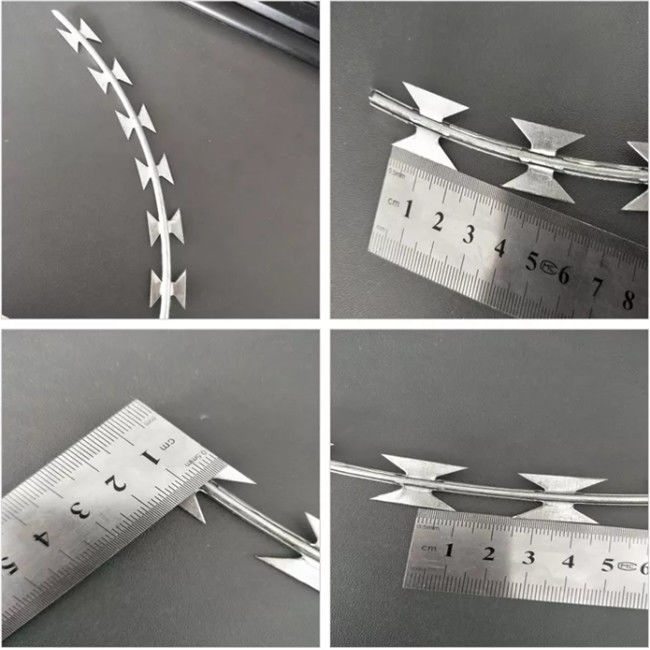

Razor barbed wire specifications:

Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence 1

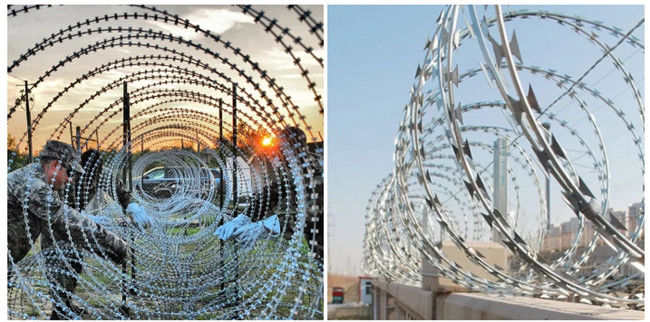

Loading pictures:



Green Pvc Coated Galvanized Coils Of Barbed Wire For Security Fence 2
