| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |
Gabion basket is a cage, cylinder, or a box filled with rocks, concrete, or sometimes sand and soil used in civil engineering, road building, military applications and landscaping.

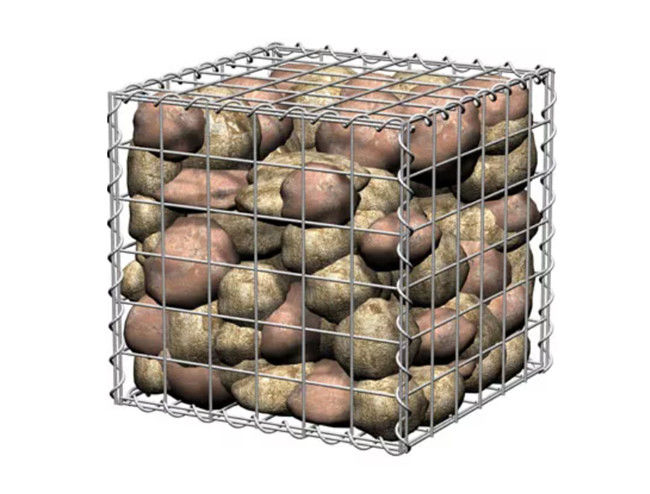

Welded Gabion stone cage is made of Welded Wire Mesh Panels assembled with spirals, stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
1. Retaining wall structures
2. Prevention of current scour and erosion control
3. Bridge protection
4. Hydraulic structures, dams and culverts
5. Embankment protection
6. Rockfall prevention and soil erosion protection
|
Product Name
|
Welded Gabion Baskets
|
Wire diameter
|
3mm/4mm/5mm
|
|
Brand
|
HBGB |
Mesh opening
|
50*50 mm, 50*100 mm,
75*75 mm, 100*100 mm
|
|
Material
|
1.Galvanized steel wire
2.Galfan steel wire
|
Place of Product
|
Hebei Province,China
|
|
Surface treatment
|
1.Hot dipped galvanized after welded
2.PVC coating
|

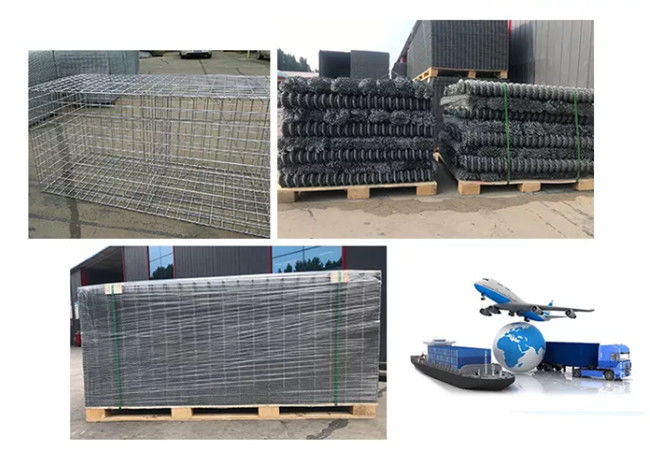

Modes of packing
|
Packed in cartons/pallets
|
|
Size
|
1000*300*300 mm
1000*500*500 mm
1000*1000*500 mm
1000*1000*1000 mm
Big: 2000*300*300 mm
2000*500*500 mm
2000*1000*500 mm 2000*1000*1000 mm |
After sale service
|
Provide technical support
|
|
Inquiry Notes:
|
Please choose wire diameter, mesh, size and quantity, tell our customer service staff, we will give you a quotation for your reference
|
||
welded gabion mesh lnstallation:
1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones
|
|
