| MOQ: | 50sets |
| Price: | negotiable |
| Standard Packaging: | bulk or in bundle, or on pallet |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 1000 sets per day |

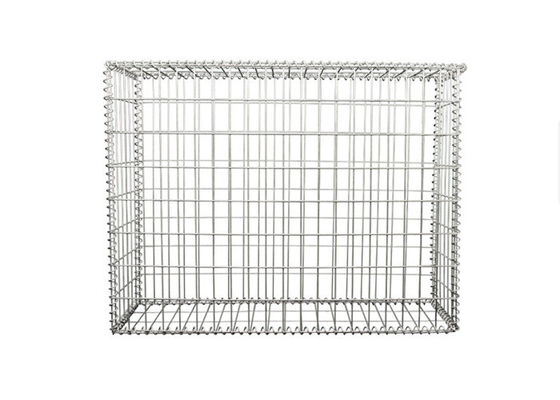

Welded Gabion Box are wire container made of Welded wire mesh panel.
Gabions are engineered retaining structures designed as mass gravity walls to hold back earth or other solid materials with out overturning, sliding or foundation failure.
All designed, gabion walls should be checked by a suitably qualified structural engineer on site prior to construction.
The modular structure of these walls allows for variation in section to be accommodated as the height increases.
The inherent strength of the units ensures structural and dimensional stability whilst a degree of flexibility accommodates ground movement and settlement where necessary.
(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >450Mpa, zinc :240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >450Mpa.
(3) coated galvanized steel wire: low carbon steel wire, pvc coated.
Field installation is quick and easy. With diaphrams and stiffeners installed, the gabion may be filled with standard loading equipment. After filling the gabion, a lid is placed on top and secured with spiral binders, lacing wire or "C" rings. Welded Wire Gabions hold their shape better - they don't bulge out when filled. They are easy to handle, which means more work, less labor and higher productivity on the job.
1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroys corrosion resistant.
4.No collapse even under big scope of deforming.
5.Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
6.Good permeation can prevent the damage by hydrostatic.
7.Less transport freight. It can be folded together for transport and further installation.
| SPECIFICATIONS | |
| Name | Welded Gabion / Gabion Cage / Gabion Box / Gabion Basket |
| Material | Low carbon steel wire |
| Wire Diameter | 3.0mm , 3.5mm , 4.0mm, or according to customer's requirements |
| Mesh Hole | 50 × 50 mm, 50 × 100 mm, 75 × 75 mm |
| Surface finish | Galvanized, Galfan Coated, Hot Dipped Galvanized |
| Color | Silver |
| Connect way | Spiral wire,U clip,C ring,lacing wire,hook |
| Application | Garden building, gabion wall,gabion fence |
| Notes:Welded Gabion comes in different sizes which can be customized | |

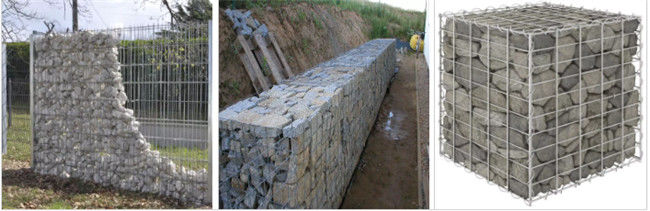

Welded gabion box can be widely used in retaining wall structure, rock fall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are more quicker and simpler to be installed than woven mesh gabions.
Single stone baskets can be used in your garden to design different fences around fireplaces, as base constructions for garden benches or bars, or to surround and decorate ponds or plants. You can even use them as a decorative support for climbing plants. Metal mesh baskets are made of firm wire.
|
|
