| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

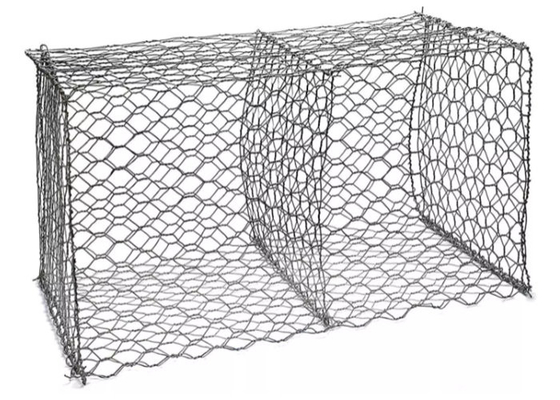

Gabions are rectangular wire mesh baskets filled with rock at the project site to form flexible, permeable, monolithic structures,such as retaining walls for commercial, industrial and road projects. They are also used for erosion control, bank stabilization,channel linings and weirs.
|
Aperture
|
6x8 8x10 10x12 12x15 cm
|
||
|
Mesh Wire diameter(SWG)
|
8- 12 -14 Gauge
|
||
|
Selvedge wire(SWG)
|
8- 11 -13 Gauge
|
||
|
Lacing wire(SWG)
|
Commonly 13 Gauge
|
||
|
Color
|
Darkgreen, gray ,black , etc.
|
||
|
Material
|
Galvanized wire ,galfan wire and PVC coated wire
|
||
|
Common size
|
2m x 6m x0.23m,
2m x 4m x 0.23m, 2m x 3m x 0.23m
|
||
|
Weight
|
1.57kg/m2
|
||
|
Packing
|
1. compacted before packaging.
2. Plastic packaging outside and on the pallet. 3. 20'container can contain more than 8,000 square meters. 40' container can contain more than 15,000 square meters |
||
|
Feature
|
Strong structure and corrosion-resistance to protect the dam and riverbank
|
||
|
Application
|
Control and guide of water or flood
Preventing of rock breaking Rock fall protection Water and soil protection Bridge prot |
||
a. Hot-dipped galvanized , Mass of Zinc Coating , Up to 300g/m2
b. PVC Coated Mattresses and gabion baskets are also available with a 0.5mm nominal thickness P.V.C. coating to enhance the
resistance of the baskets to corrosion of the wire mesh. This provides a overall increase in diameter of 1mm to all wires used in
the manufacturing process.
c. Galfan, 95% zinc, 5% aluminum
Gabion Mesh Basket is used for river bank and scour protection, bridge and weir protection, channel linings and erosion control. It is also widely used for the embankment stability.
The woven gabion mattress can be used in the differential settlement applications and the welded gabion mattress can be used in the landscape constructions.
|
|
