| MOQ: | 50 PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
The stone cage net is made of high-corrosion-resistant, high-strength, ductile low-carbon steel wire or PVC-coated steel wire using mechanical weaving. The box structure made of the net is the stone cage net box. According to ASTM and EN standards, the diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the gabion wire is not less than 38kg / m2, the weight of the metal coating is generally higher than 245g / m2, the diameter of the edge line of the gabion mesh is generally larger than the diameter of the wire. The length of the double-stranded stranded part should not be less than 50mm. To ensure that the metal coating and PVC coating of the stranded part of the steel wire are not damaged.
1. Electro-galvanized. The amount of zinc applied is 10g / m2. Poor corrosion resistance
2. Hot dip galvanized. The amount of zinc can reach 300g / m2. Strong antiseptic
3. Galfan (zinc aluminum alloy). This is divided into two materials, zinc-5% aluminum-mixed rare earth alloy steel wire, zinc-10% aluminum mixed rare earth alloy steel wire. Super corrosion resistance
4. PVC coating. The thickness of the plastic coating is generally 1.0mm, for example: 3.7mm after 2.7mm. Strong antiseptic

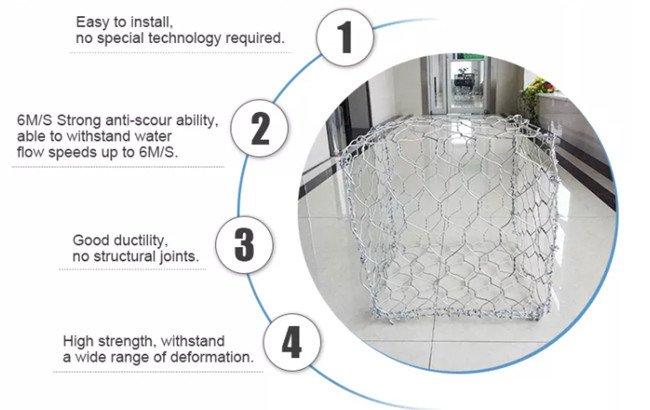

1. The flexible structure can adapt to the change of the slope without being destroyed, and has better safety stability than the rigid structure.
2. Strong anti-scouring ability, can withstand water flow speed up to 6m / s.
3. The structure is permeable in nature, and it is highly inclusive of the natural effect and filtering effect of groundwater. Suspended matter and sludge in the water can be deposited in the rock fill joint, which is conducive to the growth of natural plants and gradually restores the original Some ecological environment.
Mesh(mm) | Wire Dia(mm) | Wire Dia(PVC Coated)Inner/outside(mm) | Strands |
60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
Length (m) | Width (m) | Height (m) | Diaphragm | Volume (m3) | Tolerance |
2.0 | 1.0 | 0.3 | 1 | 0.6 | L:+/-3% W:+/-5% H:+/-5% |
3.0 | 1.0 | 0.3 | 2 | 0.9 | |
4.0 | 1.0 | 0.3 | 3 | 1.2 | |
2.0 | 1.0 | 0.5 | 1 | 1.0 | |
3.0 | 1.0 | 0.5 | 2 | 1.5 | |
4.0 | 1.0 | 0.5 | 3 | 2.0 | |
1.0 | 1.0 | 0.5 | 0 | 0.5 | |
1.0 | 1.0 | 1.0 | 0 | 1.0 | |
2.0 | 1.0 | 1.0 | 1 | 2.0 | |
3.0 | 1.0 | 1.0 | 2 | 3.0 | |
4.0 | 1.0 | 1.0 | 3 | 4.0 |

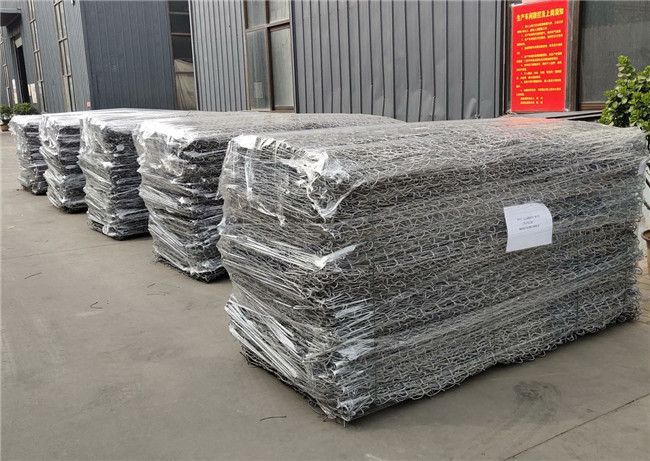

Packing & loading pictures:

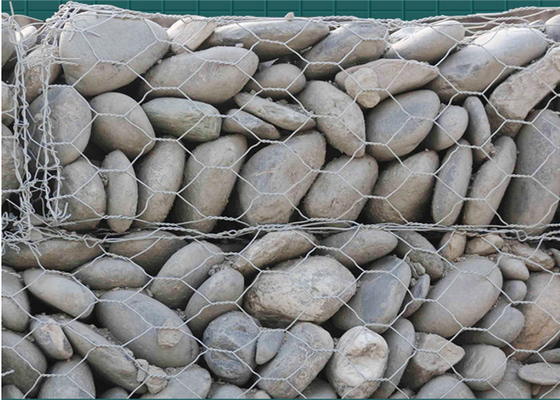

Application:
|
|
