| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabion net is made of low carbon steel wire with high corrosion resistance, high strength and ductility or PVC coated steel wire by mechanical weaving. The box structure made of the net is gabion net,net is used for the scour protection of rivers, dikes and seawalls, as well as cage for the closure of reservoirs and rivers. The most serious disaster of the river is that the water scours the Bank of the river and causes the flood, which leads to a lot of loss of life and property and a lot of soil erosion. Therefore, when dealing with the above problems, the application of the grid ecological grid structure becomes one of the best solutions, which can make the river bed and bank permanent protection.
Gabion Specifications:
| Specifications of gabion mattress | ||
| Length (m) |
Width (m) |
Height (m) |
| 2 | 1 | 0.15 0.17 0.23 0.3 |
| 3 | 1 | |
| 3 | 2 | |
| 4 | 1 | |
| 4 | 2 | |
| 5 | 1 | |
| 5 | 2 | |
| 6 | 1 | |
| 6 | 2 | |
| Hot dip galvanized gabion box | ||
| Size(m) | Mesh size(cm) |
Diameter(mm) selvage wire/mesh wire/tie wire |
|
2x1x1 2x1x0.5 |
8x10 10x12 |
3.4/2.7/2.2 3.9/3.0/2.2 3.9/2.7/2.2 |
|
3x1x1 3x1x0.5 |
||
| 4x1x1 | ||
| PVC coated gabion box | |||
| Size(m) | Mesh size(cm) |
Before PVC Diameter(mm) selvage wire/mesh wire/tie wire |
After PVC Diameter(mm) selvage wire/main wire/tie wire |
|
2x1x1 2x1x0.5 |
8x10 10x12 |
3.4/2.7/2.2 | 4.4/3.7/3.2 |

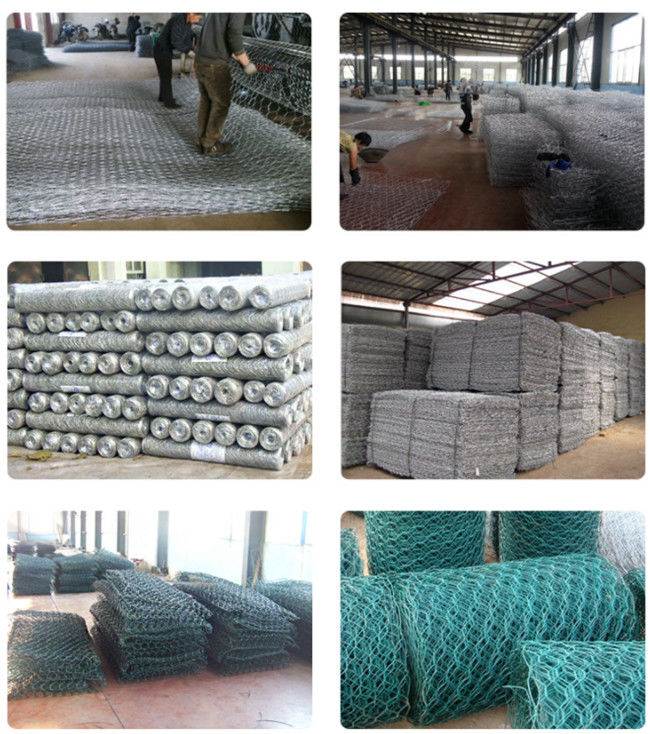

Packing and transportion:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
|
|
