| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

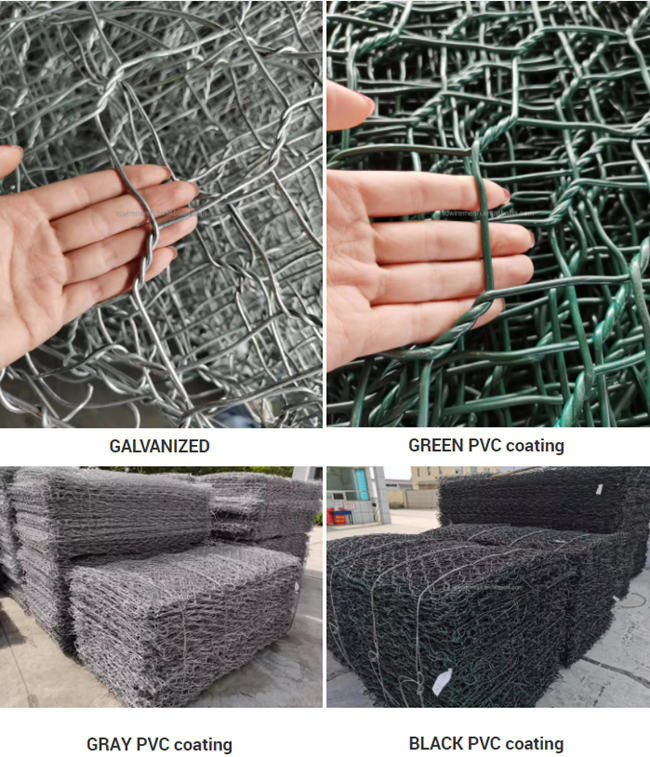

Gabions & es are rectangular baskets made of heavily galvanized, double twisted, steel woven wire mesh. The single unit constructed baskets are assembled, laced together and then filled with stone to form a monolithic structure. Gabions and es are used for retaining walls, sound barriers, channel linings, slope stabilization, dams and weirs. They are particularly effective in restoring the environment and promoting vegetation growth.
Our mesh is also used very successfully for rockfall protection and mechanically stabilized soil walls (). All the physical and mechanical properties of Zhuoda Gabions and es meet or exceed the requirements of ASTM A975.
Gabion mat strength lies in their double twisted hexagonal mesh of steel wire which is reinforced by selvedges of heavier
wire running along the edges.

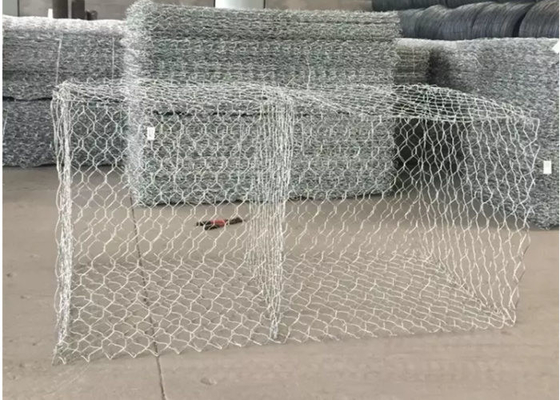

The base section is divided into compartments to restrict the movement of stone and strengthen the structure.
The lid is supplied as a separate panel.
The wire will not unravel even when cut.
Assembly is easy, requiring no specialized labor and nearby rock is used for fill.
Free drainage and 30-35% voids allow vegetation to grow.
Gabion Specifications:
| Standard Wire Diameter | |||
|
Mesh Opening (mm) |
Mesh wire (mm) |
Selvedge wire (mm) |
Lacing Wire (mm) |
| 60x80 | 2.7 | 3.4 | 2.2 |
| 80x100 | 2.7 | 3.4 | 2.2 |
| 3.0 | 3.9 | 2.4 | |
| 100x120 | 2.7 | 3.4 | 2.2 |
| 3.0 | 3.9 | 2.4 | |
| Size For Gabion | ||||
|
Length (m) |
Width (m) |
Height (m) |
Cells | Tolerance |
| 3 | 2 | 0.17 | 3 | Length±5% Width±5% Height±5% |
| 3 | 2 | 0.23 | 3 | |
| 3 | 2 | 0.3 | 3 | |
| 4 | 2 | 0.17 | 4 | |
| 4 | 2 | 0.23 | 4 | |
| 4 | 2 | 0.3 | 4 | |
| 6 | 2 | 0.17 | 6 | |
| 6 | 2 | 0.23 | 6 | |
| 6 | 2 | 0.3 | 6 | |

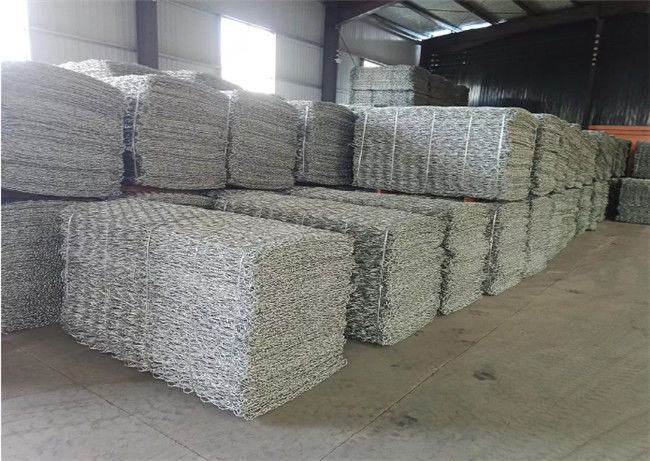

Packing:
Retaining wall structures; Prevention of current scour and erosion control; Bridge protection; Hydraulic structures, dams and culverts; Embankment protection; Rockfall prevention and soil erosion protection.
|
|
