F82 Concrete Reinforcement Welded Wire Mesh 7.6mm Ribbed Steel

Products

Concrete Reinforcement Welded Wire Mesh

Galvanized Serrated Bar Grating

Temporary Construction Fence Panel

F82 Concrete Reinforcement Welded Wire Mesh 7.6mm Ribbed Steel

Name: F82 Concrete Reinforcement Welded Wire Mesh 7.6mm Ribbed Steel
Brand: HBGB
SKU: GB-005
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (173 reviews)

MOQ:	100pcs
Price:	negotiable
Standard Packaging:	in bundle or bulk
Delivery Period:	10-20 days
Payment Method:	L/C, T/T
Supply Capacity:	3000 pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HBGB

Certification

ISO 9001

Model Number

GB-005

Product Name:

Concrete Reinforcing Mesh

Material:

Q235

Mesh Type:

Welded Wire Mesh

Color:

Natural Color Of Iron

Characteristics:

High Strength

Wire Diameter:

2-14 Mm

Width:

2, 2.2, 2.4m

Length:

2-11.8m

Application:

Beam Column Slab,industrial And Ect

Mold:

Cold Rolled Ribbed Bar Mesh,hot Rolled Steel Bar Mesh Etc

Minimum Order Quantity:

100pcs

Price:

negotiable

Packaging Details:

in bundle or bulk

Delivery Time:

10-20 days

Payment Terms:

L/C, T/T

Supply Ability:

3000 pcs per day

High Light:

7.6 mm Concrete Reinforcement Welded Wire Mesh F82

7.6 mm F82 Concrete Reinforcement Welded Wire Mesh

F82 welded wire for concrete ribbed steel

Product Description

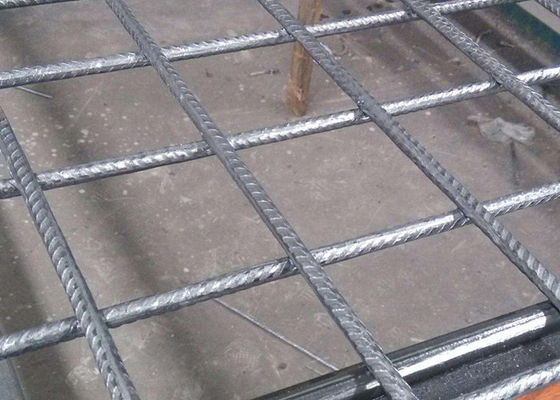

7.6 mm ribbed steel F82 Concrete Reinforcement Welded Wire Mesh

Concrete Reinforcement Welded Wire Mesh Description:

Reinforcement mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square reinforcement mesh grid pattern and is produced in flat sheets.

The wire used in our reinforcing mesh has a ribbed profile. This ribbed profile creates improves bonding to concrete, which when compared to smooth wire profiles, minimizes any concrete cracking that may occur as a result of concrete shrinkage.

Concrete Reinforcement Welded Wire Mesh Specifications:

1.GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)

Ref No.	Std Unit	Longitudinal wire(mm)	Cross wire(mm)	Pitch of wire(mm)	Mass(kg)	Mass(kg/m2)
Q131	Sheet	5	5	150@150	22.476	2.091
Q188	Sheet	6	6	150@150	32.401	3.014
Q221	Sheet	6.5/5.0	6.5	150@150	33.707	3.316
Q295	Sheet	7.5/5.5	7.5	150@150	44.245	4.116
Q378	Sheet	8.5/6	8.5	150@150	66.659	5.157

2.Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400mm)

Ref No.	Std Unit	Longitudinal wire(mm)	Edge wire(mm)	Cross wire(mm)	Mass(kg)
SL81(F81)	Sheet	7.6@100	7.6@100	7.6@100	105
SL102(F102)	Sheet	9.5@200	6.75@100	9.5@200	80
SL92(F92)	Sheet	8.6@200	6@100	8.6@200	66
SL82(F82)	Sheet	7.6@200	5.37@100	7.6@200	52
SL72(F72)	Sheet	6.75@200	4.77@100	6.75@200	41
SL62(F62)	Sheet	6@200	4.77@100	6@200	33
SL52(F52)	Sheet	4.77@200	4.77@100	4.77@200	21

Features of Concrete Reinforcement Welded Wire Mesh include:

1-High strength ,tensile strength exceeding 550map

2-Convenient for installation.saving 70% of time as compared to manually bound mesh

3-Cost effective.saving more than 30% of steel bars ,reducing overall costs by more than 10%

4-Facilitating enhancement of project quality.reducing surface cracking of roads,ground and concrete floors of buildings by more than 75%

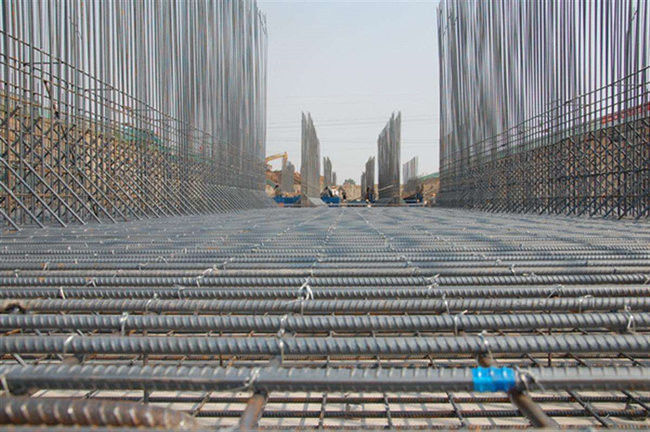

Concrete Reinforcement Welded Wire Mesh Applications:

Reinforcing bar welded meshes are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body, beams and columns and the others.

F82 Concrete Reinforcement Welded Wire Mesh 7.6mm Ribbed Steel 0

Pictures of Workshop and Producing:

F82 Concrete Reinforcement Welded Wire Mesh 7.6mm Ribbed Steel 1

F82 Concrete Reinforcement Welded Wire Mesh 7.6mm Ribbed Steel 2
