| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | Steel Pallet or customized |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000 pcs per day |

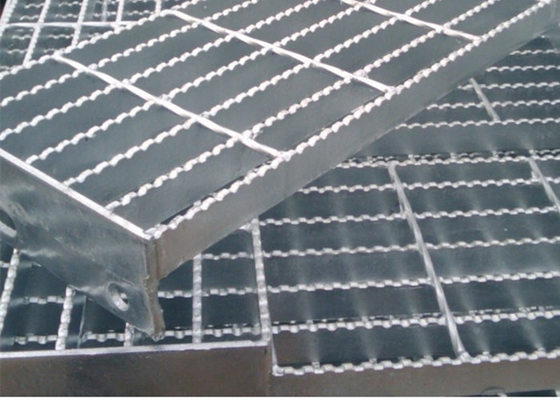

Steel plate by the bearing flat steel bar in accordance with certain spacing and cross arrangement,the welded info a metal products with square lattice in the middle;a steel lattice plate is mainly used to make steel structure platform board,ditch cover plate,steel ladder step plate,building ceiling etc.Lattice steel plate applied to alloy building materials,power station,boiler,shipbuilding,petrochemical,chemical and general industrial buildings, municipal construction and other industrial, with light ventilation,skid resistance,strong bearing capacity.beautiful and durable,easy to clean,convenient installation and other advantages.
Material :Mild steel & Low carbon steel, etc.
Surface treatment: hot-dipped galvanized, electric galvanized.
1) Bearing bar shapes: plain or serrated or I bar type.
2) Bearing Bar Pitch (center to center): 30, 40, 60mm are recommended,but we can also do it under customer's request.
3) Bearing Bar (Load Bar) Specifications (mm):The specification(thickness of bearing bar)of plain type and serrated type is 20 x 3 to 100 x 10;
4) Cross bar pitch(mm) :38, 40, 50, 60, 76, 80, 100, 110, 120 etc.
1. Size: 1000mm L x 660mm W/pc, closed ends
2. Flat bar: 40x6mm, 25mm spacing from center to center
3. Round bar (2nos.): Ø20mm slot through flat bar, fully welding at the ending of
the flat bar;
4. Finish: Hot dipped galvanized.
| flat bar/mm | cross bar | flat bar pitch | cross bar pitch |
| 20*5 | 6*6mm, 8*8mm |
30mm 40mm 60mm |
100mm 50mm |
| 25*5 | |||
| 32*5 | |||
| 40*5 | |||
| 50*5 | |||
| 65*5 | |||
| 75*6 | |||
| 100*8 | |||
| 100*10 |
* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads
|
|
