| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | Steel Pallet or customized |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000 pcs per day |

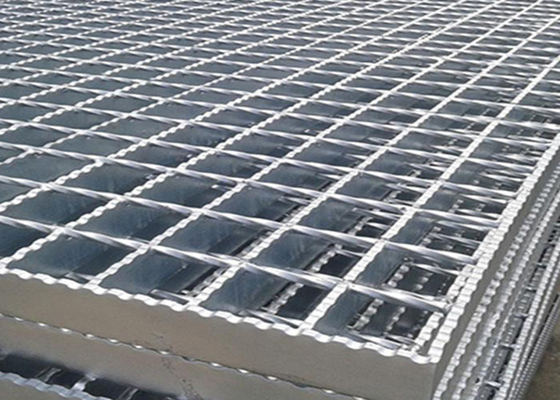

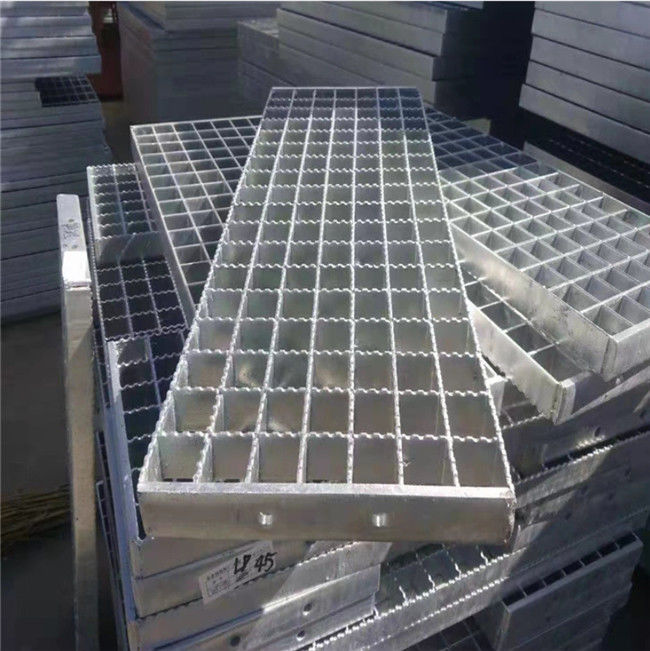

It is steel bar according to a certain distance and cross arranged and welded into the middle of a square latice with an iron and steel products . It is mainly used on the industrial platform , flooring , drainge cover , well cover , oil platform , stair tread etc.
|
Bearing Bar
|
25x2,25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5 mm etc
|
||
|
Usual Pitch
|
41mm x100mm & 30mm x100mm
|
||
|
Special Pitch
|
41mmx50mm, 30mmx 50mm, 33mmx 100mm, 33mmx50mm,33mmx38mm,
34mm x 100mm, 34mmx50mm,34mm x 38mm
|
||
|
Material Standard
|
Q235,ASTMA36,A1011,A569,S275JR,SS304&316 etc
|
||
|
Surface Treatment
|
galvanized,black,painted,spray coating,self color
|
||
|
Bearing Bar Type
|
serrated/teeth plain/smooth I bar Serrated I bar
|
||
|
HS code
|
7308900000
|
||
|
Sample
|
small pc for free
|
||
Untreated, Plastic spraying or Hot Dipped Galvanizing
| Specification of Steel Grating | |
| Remarks: Special Material, High Zinc Coating and New Style can be Customized. | |
| Material Standard |
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc |
|
Bearing Bar (Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. |
| Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
| Packing |
(1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
| Payment Term | T/T, L/C, Western Union, Credit Card, Alibaba Trade Assurance |
* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads
|
|
