| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | Steel Pallet or customized |
| Delivery Period: | 15-25 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000 pcs per day |

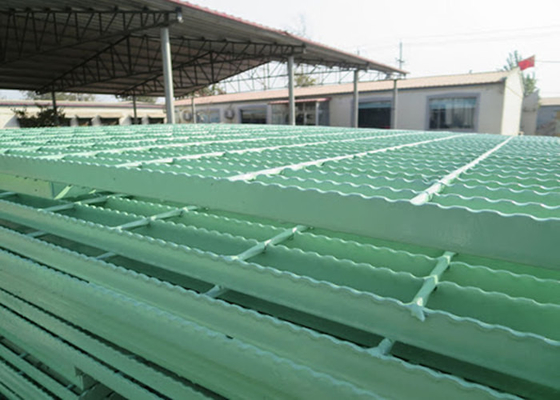

Steel grating is a kind of widely used grid products. They are used in various industrial fields and has the strongest resistance to surface impact.
|
Bearing bar ( widthx thickness)
|
25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10 etc
I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
|
|
earing bar pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60 etc
|
|
Twisted cross bar pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm
|
|
Surface treatment
|
black annealed wire, hot dipped galvanized, powered coated, painting etc
|
|
Greating style
|
Plain, Smooth, Serrated, teeth, I bar
|
1. Size: 1000mm L x 660mm W/pc, closed ends
2. Flat bar: 40x6mm, 25mm spacing from center to center
3. Round bar (2nos.): Ø20mm slot through flat bar, fully welding at the ending of
the flat bar;
4. Finish: Hot dipped galvanized.
| flat bar/mm | cross bar | flat bar pitch | cross bar pitch |
| 20*5 | 6*6mm, 8*8mm |
30mm 40mm 60mm |
100mm 50mm |
| 25*5 | |||
| 32*5 | |||
| 40*5 | |||
| 50*5 | |||
| 65*5 | |||
| 75*6 | |||
| 100*8 | |||
| 100*10 |
* Anti slip bridge decking
* Bridge walkway
* Drainage systems
* Fire truck platforms
* Mass transit platforms
* Marine and ship decks
* Mezzanines
* Non-slip walkways
* Non-skid pit covers
* Slip resistant platforms
* General Industries
* Truck platforms
* Vault covers
* Wet Decks
* Wastewater treatment plant grating
* Stair treads
|
|
