| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle, by pallet, wooden case or customized |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000pcs per day |

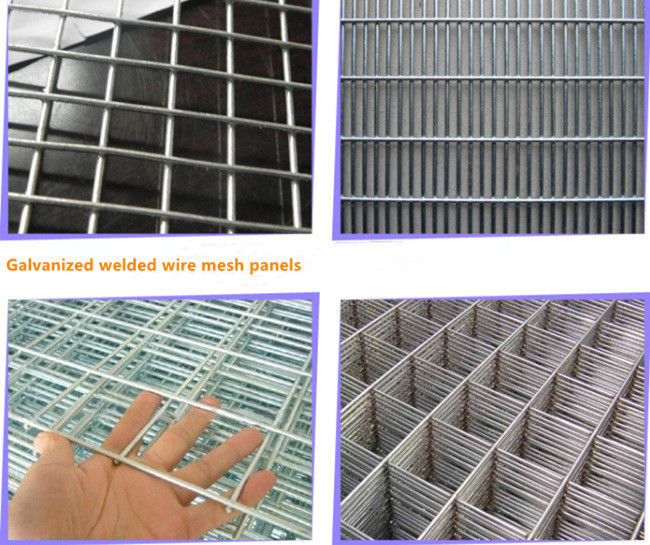

Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, PVC coated wire and stainless steel wire, after welding or before welding and surface zinc treating .The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.
Hot dipped galvanized after welding, Welding with hot dipped galvanized iron wire Electro galvanized after welding, Welding with electro galvanized iron wire PVC coated welded wire mesh.

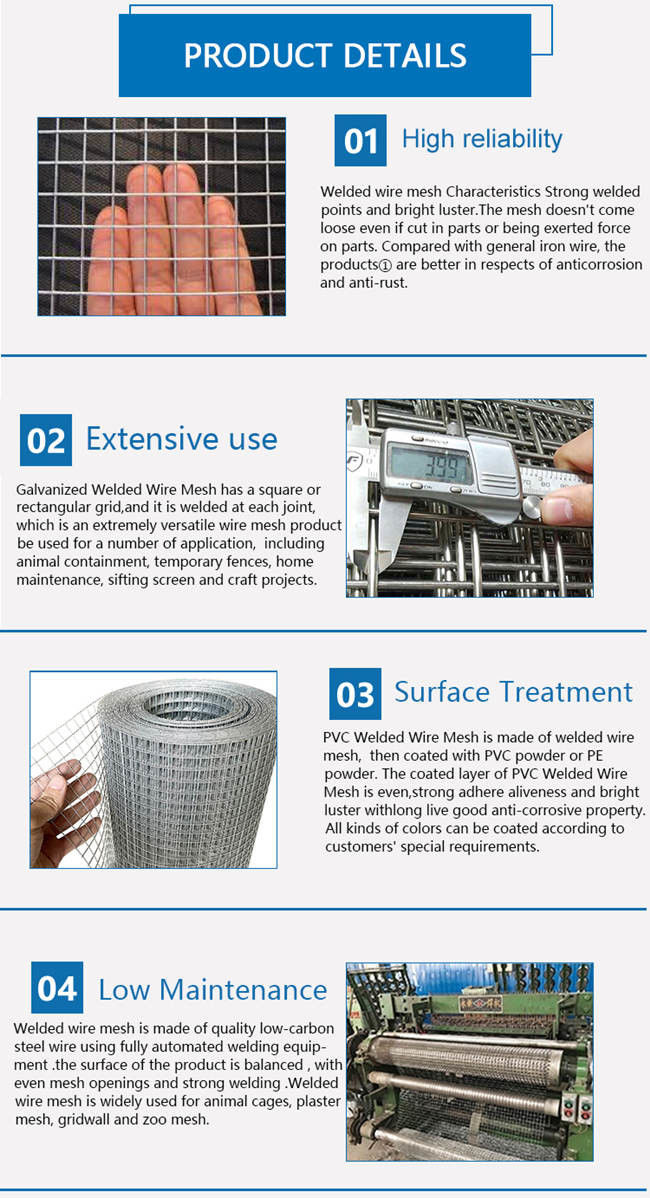

1) High reliability
Welded wire mesh Characteristics Strong welded points and bright luster.The mesh doesn't come loose even if cut in parts or being exerted force
on parts. Compared with general iron wire, the products are better in respects of anticorrosion and anti-rust.
2) Extensive use
Galvanized Welded Wire Mesh has a square or rectangular grid,and it is welded at each joint, which is an extremely versatile wire mesh produc
be used for a number of application, including animal containment temporary fences, home maintenance, sifting screen and craft projects.
3) Surface Treatment
PVC Welded Wire Mesh is made of welded wire mesh, then coated with PVC powder or PE powder. The coated layer of PVC Welded Wire Mesh is even,strong adhere aliveness and bright luster withlong live good anti-corrosive property. All kinds of colors can be coated according to
customers' special requirements.
4) Low Maintenance
Welded wire mesh is made of quality low-carbon steel wire using fully automated welding equip- ment .the surface of the product is balanced,with even mesh openings and strong welding .Welded wire mesh is widely used for animal cages, plaster mesh, gridwall and zoo mesh.
| Specification List of Welded Wire Mesh Roll | ||
| Opening | Wire Diameter (BWG&mm) | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| 2" x 3" | 50mm x 70mm | 2.0mm,2.5mm,1.9mm,1.65mm |
| 3" x 3" | 75mm x 75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| Technical Note: | ||
| 1,Standard roll length: 20m 25m 30m;width: 0.5m to 1.8m | ||
| 2,Special sizes available at request | ||
| 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||

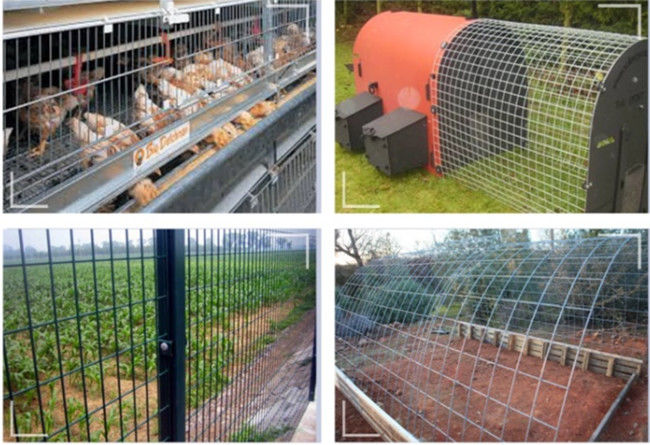

Fence, Animal Safety Net
Slurry Net in petroleum
Sifting Mesh and Screening Mesh in chemical
Acid Washing Mesh
|
|
