| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle, by pallet, wooden case or customized |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000pcs per day |

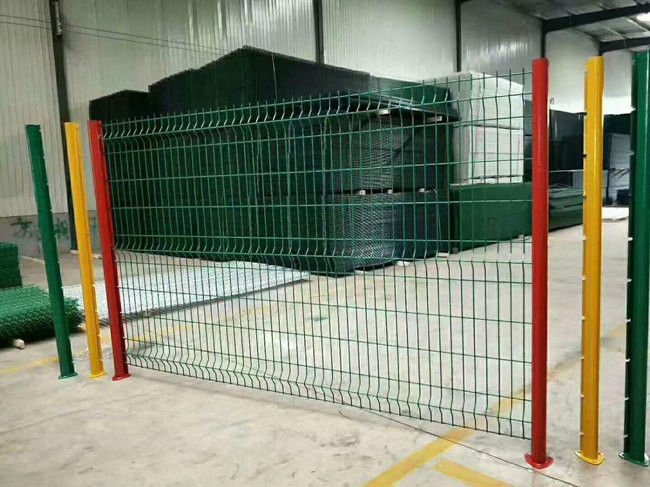

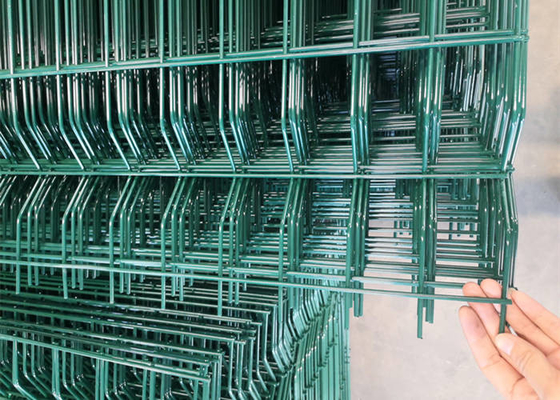

The welded wire mesh fence panels could be 4 curvy, 3 curvy, 2 curvy according to the height of the mesh fence, and which are available in a range of heights from 1030 to 2500mm and have a width of 2500 to 3000mm.
The wire diameter is usually from 4mm to 5mm, which welded at each intersection. The panels have vertical barbs of 20mm-30mm at the top.
The mesh patterns are 100X50mm, or 150X70mm,200mmx50mm.
The welded mesh fence panels are galvanized before PVC-coating adhesion to the product surface in accordance with the GB/T18226-2000 standard.
The Colors of PVC coatings usually are RAL6005 and RAL9003. Other colors can be requested.
The panels are secured laterally on the posts with specialized fixing made out of metal (security clips). The square posts (50x50mm, or 60X60mm) are covered with a plastic cap. Specifications can be customized.
|
Mesh Panel |
Panel Height | 600-3000mm |
| Panel Width | 2000-3000mm | |
| Wire Thickness | 3-6mm | |
| Mesh | 50x150mm,50×200mm,50×100mm,55×200mm,55×100mm | |
| Material | Q195 | |
| Surface Treatment | Pre galvanized or hot dipped galvanized,powder coating or PVC coated after welding. | |
| Folds NO. | 2,3,4(according to the height) | |
|
Fence Posts |
Peach Posts |
Profile:50×70mm,60×90mm,70×100mm Wall Thickness:1.2mm,1.5mm |
| Square Tube |
Profile:50×50mm,60×60mm Wall Thickness 1.5mm-4.0mm |
|
| Rectangle Tube |
Profile:60×40mm,80×40mm Wall Thickness:1.5mm-4.0mm |
|
| Round Pipe |
Profile:φ48,φ60,φ75 Wall Thickness:1.5-3.2mm |
|
| Post Height | According to fence panel height(Normal 0.65-4m) | |
| Finish | Galvanized and Electrostatic polyester powder coated | |
| Accessories | post cap, clamps, bolts and nuts,etc. | |
| Fence Color | Dark green(RAL6005),other RAL colors,also available as requests,uv available. | |
The welded mesh fencing can be used for gardens, factory, road , highway, public buildings , parks, government buildings, ball court, industry & commercial sector.
|
|
