| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle, by pallet, wooden case or customized |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000pcs per day |

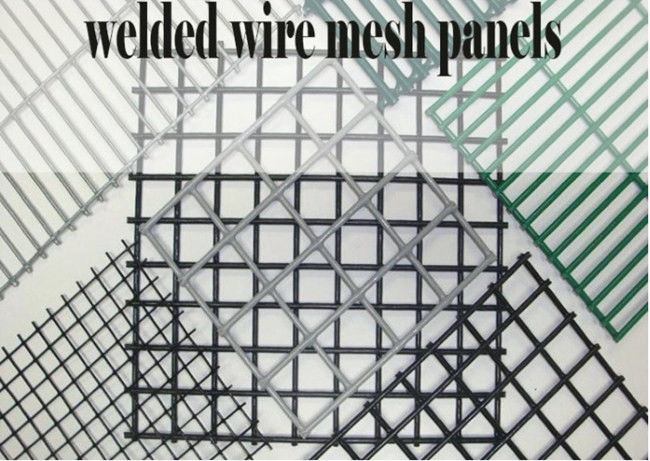

Welded wire mesh selection of high-quality wire, made by precision automated mechanical welding, welded wire mesh forming galvanized (electroplating or hot dip); galvanized wire welded wire mesh selection of high-quality galvanized wire through sophisticated automated mechanical welding production. The above product mesh surface is flat, solid structure, strong overall, with strong corrosion resistance.
Hot dipped galvanized after welding, Welding with hot dipped galvanized iron wire Electro galvanized after welding, Welding with electro galvanized iron wire PVC coated welded wire mesh.

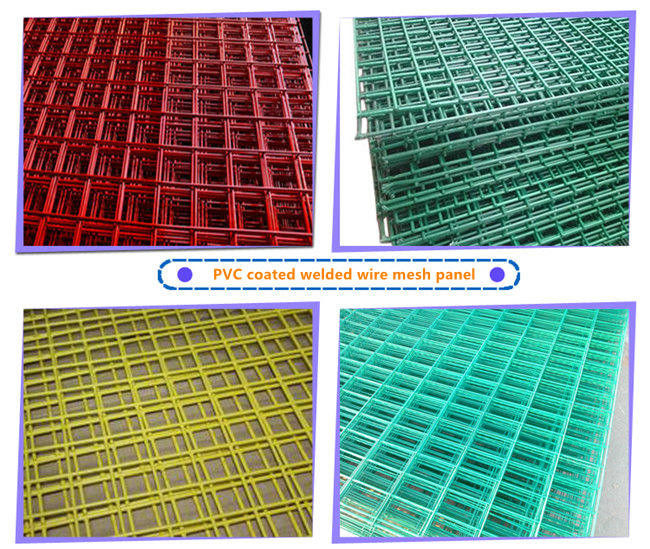

PVC coated welded wire mesh is made of high-quality low-carbon steel welded together, the pvc or pe, pvc powder after curing the surface coated with a coating, with strong adhesion, corrosion resistance, coating color bright, full color, light and so on. Diverse colors, optional dark green, grass blue, black, red, yellow and many other colors.
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter | |
| In ''inch'' | In Metric Unit (mm) | |
| 1/4'' x 1/4'' | 6.4mm x 6.4mm | BWG22-BWG24 |
| 3/8'' x 3/8'' | 10.6mm x 10.6mm | BWG19-BWG22 |
| 1/2'' x 1/2'' | 12.7mm x 12.7mm | BWG16-BWG23 |
| 5/8'' x 5/8'' | 16mm x 16mm | BWG18-BWG21 |
| 3/4'' x 3/4'' | 19.1mm x 19.1mm | BWG16-BWG21 |
| 1'' x 1/2'' | 25.4mm x 12.7mm | BWG16-BWG21 |
| 1-1/2'' x 1-1/2'' | 38mm x 38mm | BWG14-BWG19 |
| 1'' x 2'' | 25.4mm x 50.8mm | BWG14-BWG16 |
| 2'' x 2'' | 50.8mm x 50.8mm | BWG12-BWG16 |
| Technical Note: 1,Standard Roll Length: 30m; Width: 0.5m to 2.0m 2,Packing: In waterproof paper in rolls. Custom Sizes and Package available at request |
||
| PVC coated welded wire mesh | ||
| Opening | Wire Diameter<BWG> | |
| In ''inch'' | In Metric Unit (mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length: 30m; width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Fence, Animal Safety Net
Slurry Net in petroleum
Sifting Mesh and Screening Mesh in chemical
Acid Washing Mesh
|
|
