Yellow 6m PVC Coated Galvanized Welded Wire Mesh Panels Q195 Square Hole

Products

Concrete Reinforcement Welded Wire Mesh

Galvanized Serrated Bar Grating

Temporary Construction Fence Panel

Yellow 6m PVC Coated Galvanized Welded Wire Mesh Panels Q195 Square Hole

Name: Yellow 6m PVC Coated Galvanized Welded Wire Mesh Panels Q195 Square Hole
Brand: HBGB
SKU: GB-008
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (167 reviews)

MOQ:	100pcs
Price:	negotiable
Standard Packaging:	in bundle, by pallet, wooden case or customized
Delivery Period:	10-20days
Payment Method:	L/C, T/T
Supply Capacity:	2000pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HBGB

Certification

ISO 9001

Model Number

GB-008

Product Name:

Welded Wire Mesh Panels

Raw Material:

Low Carbon Steel Wire 195

Surface Treatment:

PVC Coated, Vinyl Coated

Color:

Yellow, Green, Black, Or Etc

Wire Gauge:

Customized

Hole Size:

1/2"-6''

Panel Width:

0.5m-2.2m

Panel Length:

0.5-6m

Application:

Used As Fence Panel

Property:

Corrosion-resisting

Minimum Order Quantity:

100pcs

Price:

negotiable

Packaging Details:

in bundle, by pallet, wooden case or customized

Delivery Time:

10-20days

Payment Terms:

L/C, T/T

Supply Ability:

2000pcs per day

High Light:

6m pvc coated wire mesh sheets

Q195 galvanized welded wire mesh panels

600CM galv mesh panels

Product Description

Square Hole Yellow Pvc Coated Galvanized Welded Wire Mesh Panels For Fence

Welded Wire Mesh Panels Introduction:

Production name	welded wire mesh roll, sheet, panel, fence
Wire diameter	1mm 2mm 3mm 4mm 4.8mm 5mm 6mm or as your requirement
Mesh size	75x75mm, 50x50mm 100x100mm, 150x150mm or as your request
Panel size	1000x2000mm, 1579 x2254mm, or as your request
Surface treatment	hot dip galvanized before/after welded, electrio galvanized before/ after welded, pvc coated and powder coated

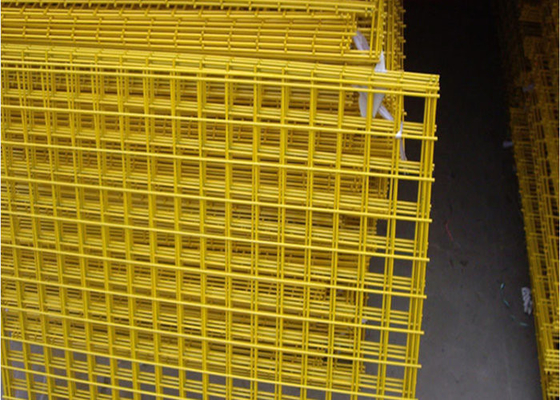

Yellow 6m PVC Coated Galvanized Welded Wire Mesh Panels Q195 Square Hole 0

Welded Wire Mesh Panels Variety:

Hot dipped galvanized after welding, Welding with hot dipped galvanized iron wire Electro galvanized after welding, Welding with electro galvanized iron wire PVC coated welded wire mesh.

Size of Welded Wire Mesh Panels:

Available in a range of different sizes, gauges and apertures, our galvanised welded wire mesh panels can be used for a wide range of domestic projects and professional applications.

We provide a welded mesh "cut to size" service.

Welded Wire Mesh Specification:

Can be supplied in rolls or panels or pieces

Specification List of Welded Wire Mesh:
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Galvanized Fencing Mesh:
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 756mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

PVC Coated Welded Mesh:
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Application of welded wire mesh panel:

6 x 6mm hole - Mouse protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures

Yellow 6m PVC Coated Galvanized Welded Wire Mesh Panels Q195 Square Hole 1
