| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

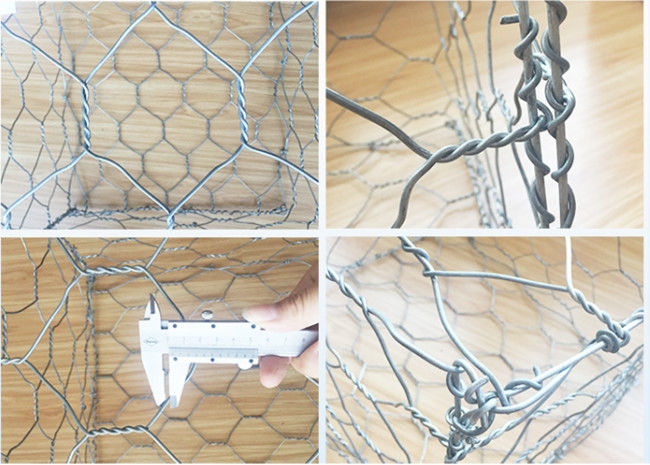

Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
Material:hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion. PVC coated Wire, PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
opening: 6*8cm,8x10cm,10*12cm
mesh wire :2.2mm,2.7mm,3.0mm
Specifications of Galvanized Gabion Box:
| gabion specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||

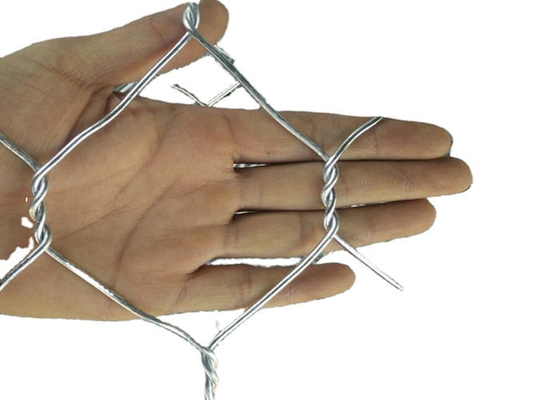

A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
| Length(M) | Width(M) | Height(M) | Diaphragm(Unit) | Volume(M3) | Tolerance |
| 2.00 | 1 | 0.30 | 1 | 0.60 | ±5% |
| 3.00 | 1 | 0.30 | 2 | 0.90 | |
| 4.00 | 1 | 0.30 | 3 | 1.20 | |
| 2.00 | 1 | 0.50 | 1 | 1.00 | |
| 3.00 | 1 | 0.50 | 2 | 1.50 | |
| 4.00 | 1 | 0.50 | 3 | 2.00 | |
| 1.00 | 1 | 1.00 | 0 | 1.00 | |
| 1.50 | 1 | 1.00 | 0 | 1.50 | |
| 2.00 | 1 | 1.00 | 1 | 2.00 | |
| 3.00 | 1 | 1.00 | 2 | 3.00 | |
| 4.00 | 1 | 1.00 | 3 |
4.00
|
Shipping:
|
|
