| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

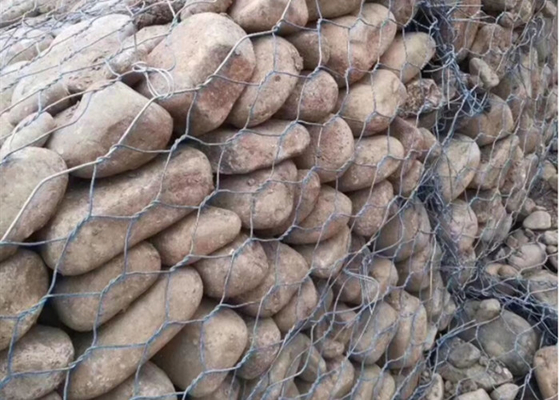

Gabion Mattress& cage is also be called heavy type hexagonal wire mesh, twisting weave wire mesh, gabion mesh, triangle machine weave mesh, or double twisted wire mesh, is metal wire weaved hexagonal mesh container, whose wire diameter is based on hexagonal wire mesh hole size. if it is metal coated hexagonal wire mesh, wire diameter is 2.0mm-4.0mm, if it is PVC coated gexagonal wire mesh, wire diameter is 3.0mm-4.5mm PVC coated metal wire, its outer frame border wire is one gauge bigger than hexagonal wire.
| WIRE MESH | |
| Mesh opening | 60x80mm, 80 x 100 mm, 100x120mm |
| Wire size | 2.0mm, 2.2mm, 2.4mm, 2,7 mm, 3.0mm, 3.2mm, etc. |
| Tolerance | |
| Lenght | ± 3% |
| Width | ± 5% |
| Height | ± 5% |
| Materials | |
| High and hot dipped galvanized low carbon steel wires, galfan(Zn 5%Al), pvc coated | |
| Thickness of pvc coating: 0.5mm | |
Galvanized Gabion Box Assembling:
First of all, construction workers will make each piece upright, to ensure that the tablet in an accurate position.
second, gabion lashing the four comes for points can be used to tie banding ligation wire or metal buckle.
Finally, with binding wire or metal buckle to connect together each piece and body.
Galvanized Gabion Box Specifications:
|
Mesh Size |
Galvanized Gabion( Dia.mm) |
PVC Gabion (Inside Dia/Outside Dia.mm) |
Max Wide Cut |
|
60x80mm |
Φ2.0-2.8 |
Φ2.0/3.0-2.8/3.8 |
4300 |
|
80x100mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
80x120mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
100x120mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
100x150mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
120x150mm |
Φ2.7-4.0 |
Φ2.7/3.7-3.5/4.5 |
4300 |
|
Normal box size (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
|
1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 |
0.50 |
|
1.0x1.0x1.0 |
0 |
1.00 |
|
|
1.5x1.0x0.5 |
0 |
0.75 |
|
|
1.5x1.0x1.0 |
0 |
1.50 |
|
|
2.0x1.0x0.5 |
1 |
1.00 |
|
|
2.0x1.0x1.0 |
1 |
2.00 |
|
|
3.0x1.0x0.5 |
2 |
1.50 |
|
|
3.0x1.0x1.0 |
2 |
3.00 |
|
|
4.0x1.0x0.5 |
3 |
2.00 |
|
|
4.0x1.0x1.0 |
3 |
4.00 |
Packing & producing pictures:

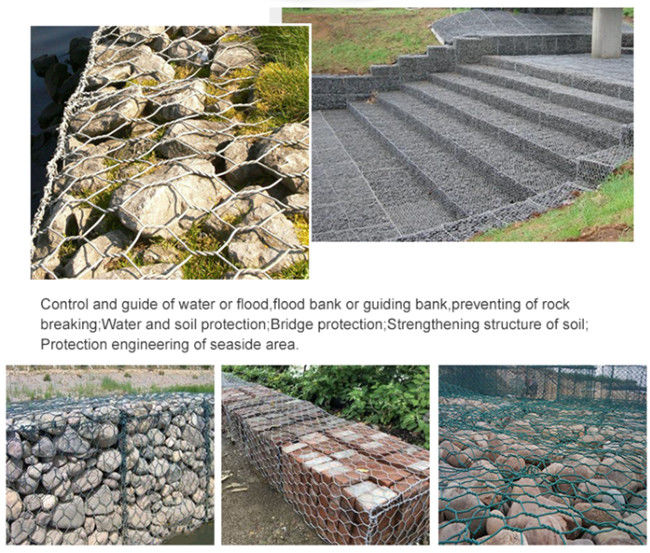

Application:
|
|
