| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

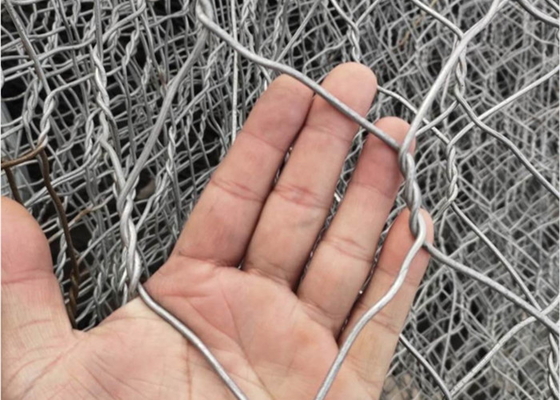

Gabion Basket means the provision by the machine a twisted hexagonal wire mesh surface together constitute a box-shaped components. Gabion basket at the construction site by stones fill to form a flexible ,permeable and overall structure, is mainly used in control river,protection of rock breaking,bridge protection, soil and water conservation ,road protection etc.
Gabion basket production quality is in full accordance with ASTM A975-97 standard and EN10223-3 standard.
First of all, construction workers will make each piece upright, to ensure that the tablet in an accurate position.
second, gabion lashing the four comes for points can be used to tie banding ligation wire or metal buckle.
Finally, with binding wire or metal buckle to connect together each piece and body.
Specifications of Galvanized Gabion Box:
| gabion specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||
A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
| Length(M) | Width(M) | Height(M) | Diaphragm(Unit) | Volume(M3) | Tolerance |
| 2.00 | 1 | 0.30 | 1 | 0.60 | ±5% |
| 3.00 | 1 | 0.30 | 2 | 0.90 | |
| 4.00 | 1 | 0.30 | 3 | 1.20 | |
| 2.00 | 1 | 0.50 | 1 | 1.00 | |
| 3.00 | 1 | 0.50 | 2 | 1.50 | |
| 4.00 | 1 | 0.50 | 3 | 2.00 | |
| 1.00 | 1 | 1.00 | 0 | 1.00 | |
| 1.50 | 1 | 1.00 | 0 | 1.50 | |
| 2.00 | 1 | 1.00 | 1 | 2.00 | |
| 3.00 | 1 | 1.00 | 2 | 3.00 | |
| 4.00 | 1 | 1.00 | 3 |
4.00
|
Stability: Structure is not easy to be destroyed
Flexibility: Compensation for the basement, if ground is not sustainable.
Durability: Galvanized & PVC coating makes longer lifetime.
Permeability: Special drainage facility is not necessary.
Cost effective: Easy to build.
Packing and Shipping:
|
|
