| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

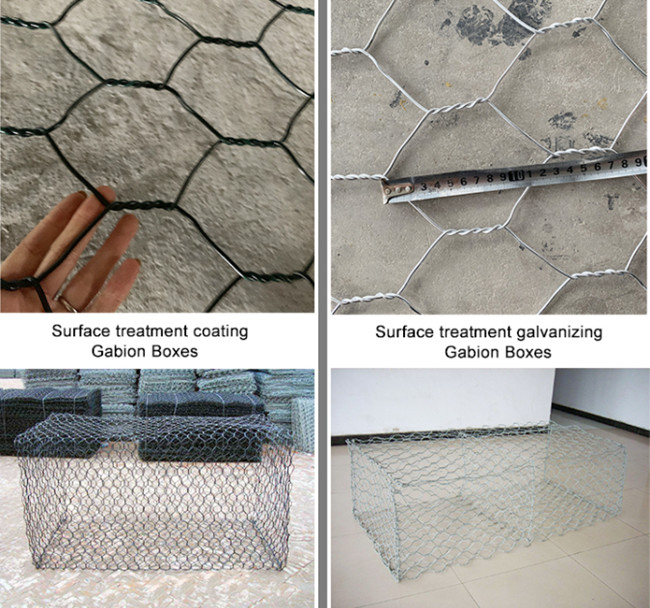

Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
Material:hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion. PVC coated Wire, PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
opening: 6*8cm,8x10cm,10*12cm
mesh wire :2.2mm,2.7mm,3.0mm
Specifications of Galvanized Gabion Box:
| gabion specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||
(1) Just put the stone in the cage and seal it.
(2) The construction is simple and does not require special technology.
(3) It has strong ability to withstand natural damage and corrosion and weather resistance.
(4) It can withstand a wide range of deformations without still collapsing.
(5) The silt between the cracks of the cage stone is conducive to plant production and can be integrated with the surrounding natural environment.
(6) It has good permeability and can prevent damage caused by hydrostatic force. Conducive to the stability of hillsides and beaches
(7) Saving transportation costs. It can be folded for transport and assembled on the job site.
(8) Good flexibility: no structural joints, the overall structure is malleable.
(9) Corrosion resistance: galvanized materials are not afraid of sea water.
Shipping:
Slope support, foundation pit support, mountain rock face hanging net spray, slope planting (greening), railway expressway isolation barrier, it can also be used as stone cages, stone mats for rivers, dams and seawalls Anti-scour protection and stoning cages for reservoirs and river closures.
|
|
