| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

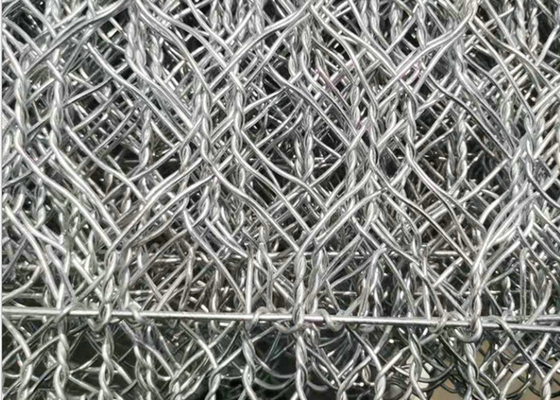

Gabion box is wire container made of hexagonal wire nettings. Wire diameter of Gabion is thicker than common hexagonal wire netting. The outside wire diameter of Gagion box range from 3.0 - 4.0mm.
Gabion Mesh/Gabion asket Manufactured from 6x8,8x10, 10x12cm doule twisted hexagohal woven steel wire mesh, as per ASTM A97597.
Gabions are filled with stones at the project site to form permeable, flexible,monolithic structures such as tetaining walls, channel linings, and weirs for erosion control projects. The steel wire used in the manufacture of the gabion is heavliy zinc( zinc coating more than 270gsm) or Galfan (zinc-5% alumimum-mischmetal(Zn-5 Al-MM alloy) coated soft temoer steel.
Galvanized Gabion Box Specifications:
|
Mesh Size |
Galvanized Gabion( Dia.mm) |
PVC Gabion (Inside Dia/Outside Dia.mm) |
Max Wide Cut |
|
60x80mm |
Φ2.0-2.8 |
Φ2.0/3.0-2.8/3.8 |
4300 |
|
80x100mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
80x120mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
100x120mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
100x150mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
120x150mm |
Φ2.7-4.0 |
Φ2.7/3.7-3.5/4.5 |
4300 |
| Length(M) | Width(M) | Height(M) | Diaphragm(Unit) | Volume(M3) | Tolerance |
| 2.00 | 1 | 0.30 | 1 | 0.60 | ±5% |
| 3.00 | 1 | 0.30 | 2 | 0.90 | |
| 4.00 | 1 | 0.30 | 3 | 1.20 | |
| 2.00 | 1 | 0.50 | 1 | 1.00 | |
| 3.00 | 1 | 0.50 | 2 | 1.50 | |
| 4.00 | 1 | 0.50 | 3 | 2.00 | |
| 1.00 | 1 | 1.00 | 0 | 1.00 | |
| 1.50 | 1 | 1.00 | 0 | 1.50 | |
| 2.00 | 1 | 1.00 | 1 | 2.00 | |
| 3.00 | 1 | 1.00 | 2 | 3.00 | |
| 4.00 | 1 | 1.00 | 3 |
4.00
|
Shipping:
|
|
