| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabion box by high corrosion resistance, high strength, ductility of low carbon steel wire or PVC coated above the use of mechanical weaving steel wire, the use of the net made from the box structure is the gabion box .It can be used for slope support, foundation pit support, mountain rock surface hanging net shotcrete, slope plant (green), railway highway isolation fence net, it can also be made into box, net pad, used for rivers, DAMS and seawall erosion protection, reservoir, river closure with cage.The most serious disaster of rivers is that the water washes the Banks and destroys them, which leads to the flood, leading to the massive loss of life and property and the massive water and soil erosion.Therefore, when dealing with the above problems, the application of the grid structure has become one of the good solutions, which can make the riverbed and the riverbank to be protected for a long time.

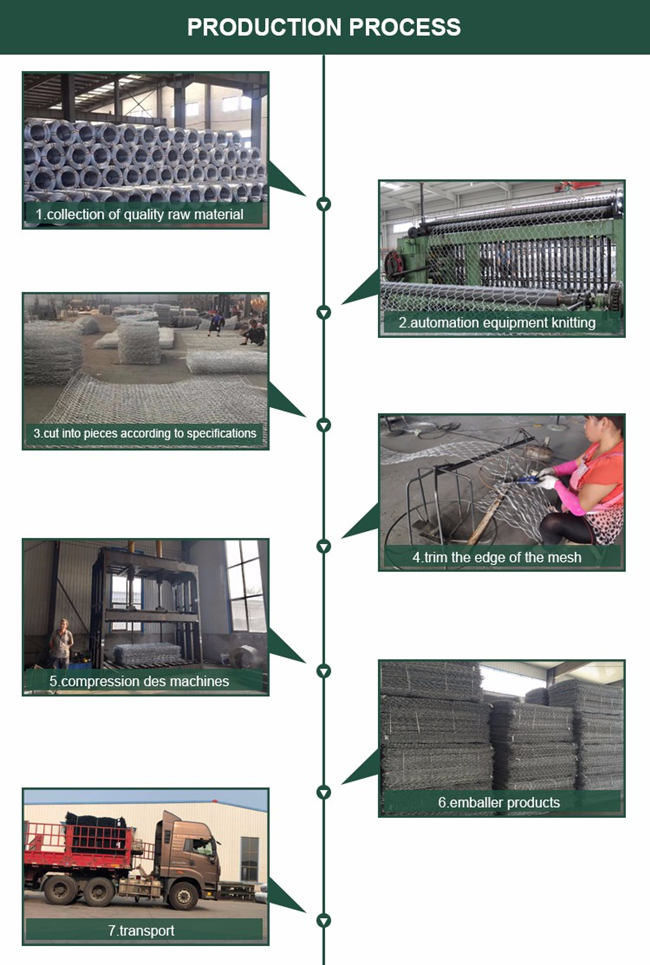

1. Collection of high quality raw material
2. automation equipment knitting
3. cut into pieces according to specifications
4. trim the edge of the mesh
5. compression des machines
6. emballer products
7. transport
Galvanized Gabion Box Specifications:
|
Mesh Size |
Galvanized Gabion( Dia.mm) |
PVC Gabion (Inside Dia/Outside Dia.mm) |
Max Wide Cut |
|
60x80mm |
Φ2.0-2.8 |
Φ2.0/3.0-2.8/3.8 |
4300 |
|
80x100mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
80x120mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
4300 |
|
100x120mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
100x150mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
4300 |
|
120x150mm |
Φ2.7-4.0 |
Φ2.7/3.7-3.5/4.5 |
4300 |

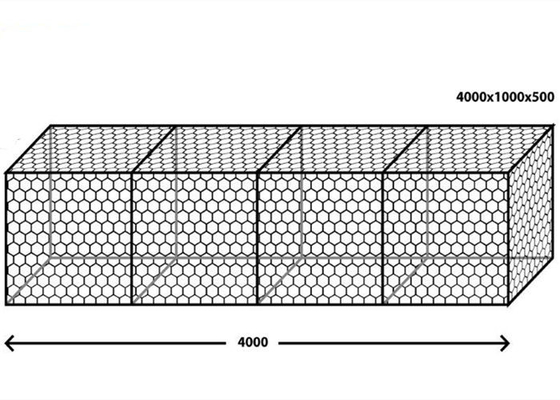

| Length(M) | Width(M) | Height(M) | Diaphragm(Unit) | Volume(M3) | Tolerance |
| 2.00 | 1 | 0.30 | 1 | 0.60 | ±5% |
| 3.00 | 1 | 0.30 | 2 | 0.90 | |
| 4.00 | 1 | 0.30 | 3 | 1.20 | |
| 2.00 | 1 | 0.50 | 1 | 1.00 | |
| 3.00 | 1 | 0.50 | 2 | 1.50 | |
| 4.00 | 1 | 0.50 | 3 | 2.00 | |
| 1.00 | 1 | 1.00 | 0 | 1.00 | |
| 1.50 | 1 | 1.00 | 0 | 1.50 | |
| 2.00 | 1 | 1.00 | 1 | 2.00 | |
| 3.00 | 1 | 1.00 | 2 | 3.00 | |
| 4.00 | 1 | 1.00 | 3 |
4.00
|
Shipping:
|
|
