| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. The Material of Wire can be zinc-5% aluminum alloy (galfan) wire, low carbon steel wire, stainless steel wire or iron wire.
Sack Gabion Mattress is similar with gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
|
Product Name
|
Gabion
|
|||
|
Hole Type
|
Hexagonal
|
|||
|
Production process
|
Three twist / Five twist
|
|||
|
Material
|
GI wire,PVC coated wire,galfan wire
|
|||
|
Wire Diameter
|
2.0mm-4.0mm
|
|||
|
Hole Size
|
60×80mm,80×100mm,100×120mm,120×150mm
|
|||
|
Gabion Size
|
3m×1m×0.3m,3m×1m×0.5m
2m×1m×0.3m,2m×1m×0.5m,Other sizes can be customized.
|
|||
Galvanized Gabion Box Usage:
It is used for the scour protection of rivers, dikes and seawalls, as well as cage for the closure of reservoirs and rivers. The most serious disaster of the river is that the water scours the Bank of the river and causes the flood, which leads to a lot of loss of life and property and a lot of soil erosion. Therefore, when dealing with the above problems, the application of the grid ecological grid structure becomes one of the best solutions, which can make the river bed and bank permanent protection.
Galvanized Gabion Box Specifications:
| Specification Of Gabion box | |||||
|
Gabion size (m) |
Wire diameter | Mesh opening | Surface treatment | ||
|
Mesh wire (mm) |
Selvage wire (mm) |
Tie wire (mm) |
|||
| 2×1×0.5 | 2.0 2.2 2.4 2.7 3.0 |
2.4 2.7 3.0 3.4 3.9 |
1.8 2.0 2.2 |
60 x 80mm 80 x 100mm 80 x 120mm 100 x 120mm 120 x 150mm |
Galvanized Galfan PVC coated PE coated |
| 2×1×1.0 | |||||
| 3×1×0.5 | |||||
| 3×1×1.0 | |||||
| 4×1×1.0 | |||||
| 6×1×1.0 | |||||
| 2×1×0.3(Mattress) | |||||
| 3×1×0.3(Mattress) | |||||
| All sizes can customized according to your request | |||||

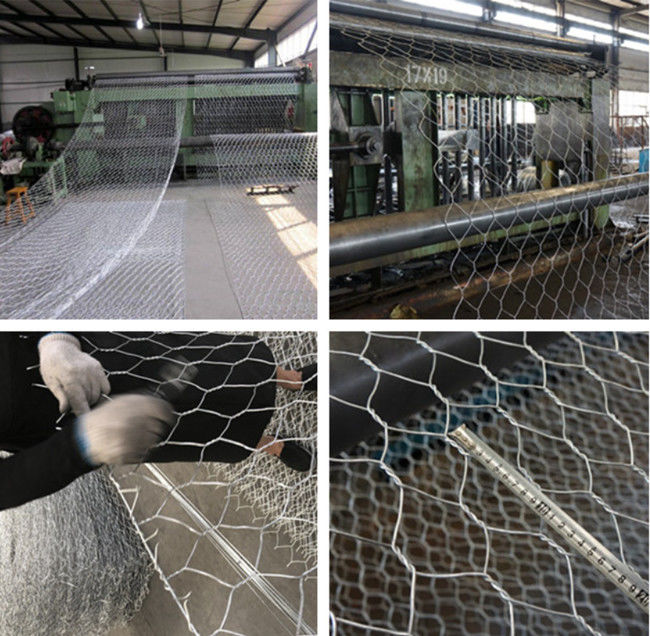

Packing & loading pictures:

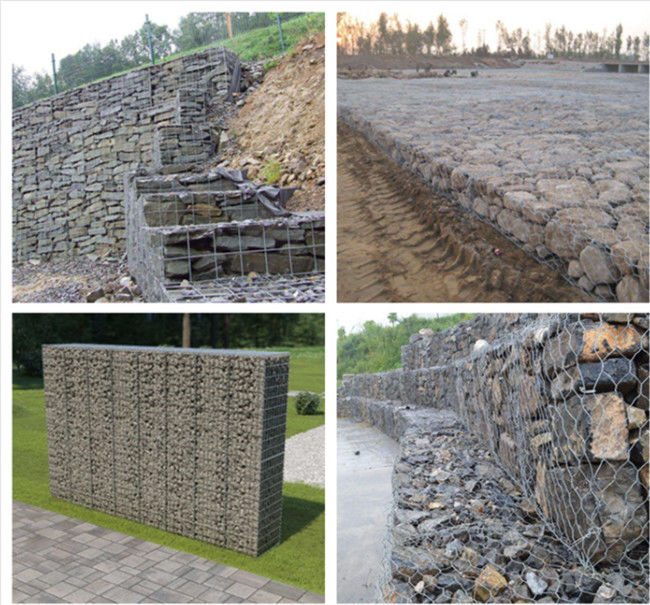

Application:
|
|
