| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle, by pallet, wooden case or customized |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000pcs per day |
Stainless steel welded wire mesh is strong and long lasting. By its very nature stainless steel wire needs no additional finish, such as galvanizing or PVC, to protect it. The wire itself is extremely resistant to rust, corrosion and harsh chemicals.
* Extra long lifetime, lasting years longer than Galvanized Before Weld products
* Extreme strength, durability and resistance to rust, corrosion and harsh chemicals
* Lowest long-term cost of ownership in harsh conditions (higher initial cost is offset by lower frequency of repair and replacement)
* Ideal for hard-to-access areas where rust and corrosion are factors
1) Stainless steel welded wire mesh rolls
material: SS304,SS3016,SS316L
wire diameter:1.5mm
aperture:15x15mm
roll size:1x30m

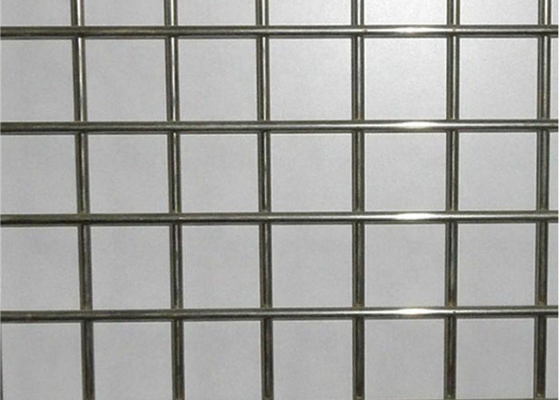

2)Stainless steel welded wire mesh panels
material: SS304,SS3016,SS316L
wire diameter:3mm,4mm,5mm,etc.
aperture:50x50mm,75x75mm,50x100mm,etc.
panel size:2x1m,2.2x1m,2x1.5m,etc.
| Specification | ||||
| Opening | Wire Diameter |
Width 0.4-2m Length 5-50m |
electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
| Inch | Metric Unit | |||
| 1/4"x1/4" | 6.4mmx6.4mm | BWG24-22 | ||
| 3/8"x3/8" | 10.6mmx10.6mm | BWG22-19 | ||
| 1/2"x1/2" | 12.7mmx12.7mm | BWG23-16 | ||
| 5/8"x5/8" | 16mmx16mm | BWG21-18 | ||
| 3/4"x3/4" | 19.1mmx19.1mm | BWG21-16 | ||
| 1"x1/2" | 25.4mmx25.4mm | BWG21-16 | ||
| 1-1/2"x1 1/2" | 38mmx38mm | BWG19-14 | ||
| 1"x2" | 25.4mmx12.7mm | BWG16-14 | ||
| 2"x2" | 50.8mmx50.8mm | BWG15-12 | ||
| 2"x4" | 101.6mmx101.6mm | BWG15-12 | ||
| 4"x4" | 101.6mmx152.4mm | BWG15-12 | ||
| 4"x6" | 101.6mmx152.4mm | BWG15-12 | ||
| 6"x6" | 152.4mmx152.4mm | BWG15-12 | ||
| 6"x8" | 15.4mmx203.2mm | BWG14-12 | ||
| Note:Special specification can be made according to customers requires | ||||
Fence, Animal Safety Net
Slurry Net in petroleum
Sifting Mesh and Screening Mesh in chemical
Acid Washing Mesh
|
|
