| MOQ: | 100pcs |
| Price: | negotiable |

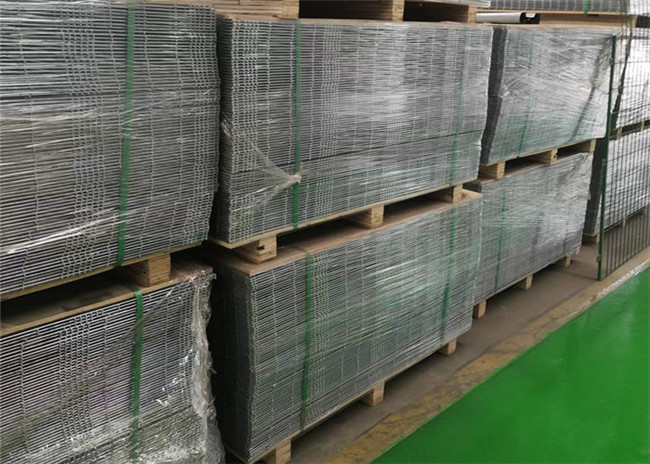

| Standard Packaging: | in bundle, by pallet, wooden case or customized |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000pcs per day |

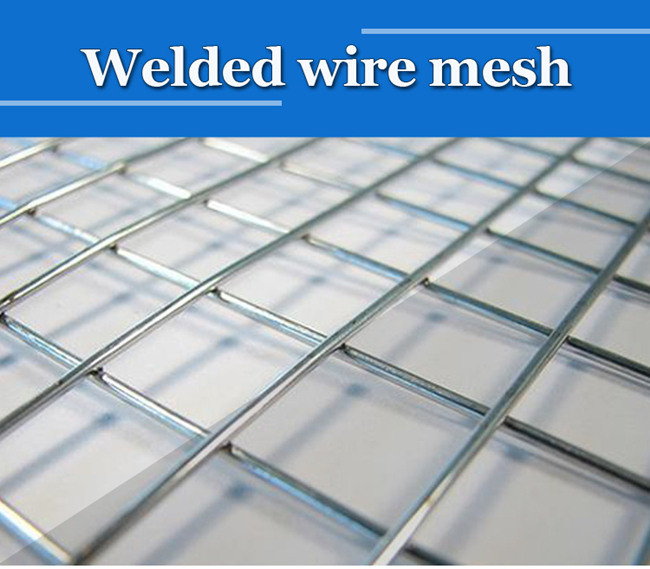

Welded wire mesh panel is a mesh made of high-quality low-carbon steel wire that has been straightened and cut and then welded by electric welding equipment. Welded wire mesh panel is widely used because of its simple structure, fast production, beautiful and practical, and easy to transport.
Hot dipped galvanized after welding, Welding with hot dipped galvanized iron wire Electro galvanized after welding, Welding with electro galvanized iron wire PVC coated welded wire mesh.
* Smooth mesh surface and bright luster
* Well-proportioned meshes
* Strong welded points
* High solid structure
* Corrosion-resisting
* Oxidation-resisting
| Specification | ||
| Opening | Wire Diameter | |
| Inch | metric Unit(mm) | |
| 1"x1" | 25mmx25mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x2" | 50mmx50mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x3" | 50mmx70mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 2"x4" | 50mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
| 2"x6" | 50mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 2"x8" | 50mmx200mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 3"x3" | 75mmx75mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
| 3"x4" | 75mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 4"x4" | 100mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 5"x5" | 125mmx125mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 6"x6" | 150mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| Technical Note: | ||
|
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2.Special size available at request |
||
* In field concretes
* Concrete runway
* In highway construction
* In viaducts.
* In Prefabricated Building Elements
* In mass housing with tunnel formwork system.
* Tunnel and Metro construction
* In various constructions of industrial buildings.
* On decks and retaining walls of reinforced concrete structures.
* In Reinforced Concrete Pipes
* As a security fence
* Gabion systems
* For decorative purposes.
* In floor coverings
* In curtain concrete and retaining wall construction
* In columns, columns and beams
* In water structures, dams, canals and flumes
* Apart from these, it is used in garden walls, balustrades and suspended ceilings
|
|
