| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle, by pallet, wooden case or customized |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000pcs per day |

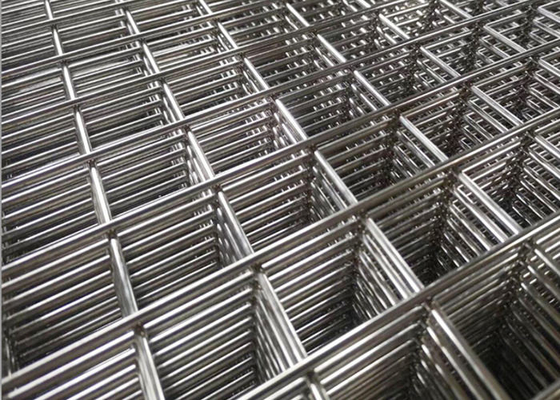

PVC coated welded wire mesh is made of high-quality low-carbon steel welded together, the pvc or pe, pvc powder after curing the surface coated with a coating, with strong adhesion, corrosion resistance, coating color bright, full color, light and so on. Diverse colors, optional dark green, grass blue, black, red, yellow and many other colors.
Electro galvanized before welded wire mesh ,Electro galvanized after welded wire mesh,hot dip galvanized before welded wire mesh ,hot dip galvanized after welded wire mesh ,PVC coated welded wire mesh.
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter | |
| In ''inch'' | In Metric Unit (mm) | |
| 1/4'' x 1/4'' | 6.4mm x 6.4mm | BWG22-BWG24 |
| 3/8'' x 3/8'' | 10.6mm x 10.6mm | BWG19-BWG22 |
| 1/2'' x 1/2'' | 12.7mm x 12.7mm | BWG16-BWG23 |
| 5/8'' x 5/8'' | 16mm x 16mm | BWG18-BWG21 |
| 3/4'' x 3/4'' | 19.1mm x 19.1mm | BWG16-BWG21 |
| 1'' x 1/2'' | 25.4mm x 12.7mm | BWG16-BWG21 |
| 1-1/2'' x 1-1/2'' | 38mm x 38mm | BWG14-BWG19 |
| 1'' x 2'' | 25.4mm x 50.8mm | BWG14-BWG16 |
| 2'' x 2'' | 50.8mm x 50.8mm | BWG12-BWG16 |
| Technical Note: 1,Standard Roll Length: 30m; Width: 0.5m to 2.0m 2,Packing: In waterproof paper in rolls. Custom Sizes and Package available at request |
||
| PVC coated welded wire mesh | ||
| Opening | Wire Diameter<BWG> | |
| In ''inch'' | In Metric Unit (mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length: 30m; width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage.
|
|
