| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle, by pallet, wooden case or customized |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000pcs per day |

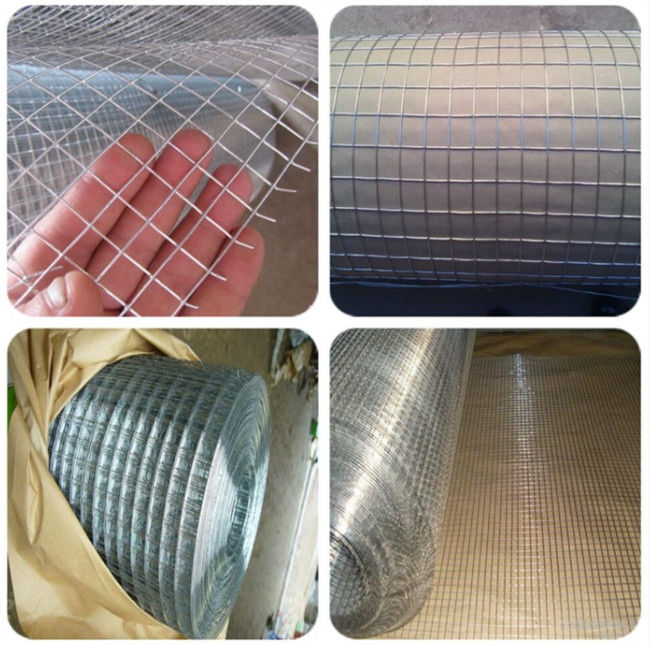

The finished welded wire mesh offer flat and uniform surface, firm structure, good integrity. The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields. The welded wire mesh can be galvanized, PVC coated, or stainless steel welded wire mesh.
Hot dipped galvanized after welding, Welding with hot dipped galvanized iron wire Electro galvanized after welding, Welding with electro galvanized iron wire PVC coated welded wire mesh.
smooth mesh surface ,well-proportioned meshes, strong welded points and bright luster. high solid structure,corrosion-resisting,oxidation-resisting.
| Specification List of Welded wire mesh | ||
| Opening | Wire Diameter | |
| In ''inch'' | In Metric Unit (mm) | |
| 1/4'' x 1/4'' | 6.4mm x 6.4mm | BWG22-BWG24 |
| 3/8'' x 3/8'' | 10.6mm x 10.6mm | BWG19-BWG22 |
| 1/2'' x 1/2'' | 12.7mm x 12.7mm | BWG16-BWG23 |
| 5/8'' x 5/8'' | 16mm x 16mm | BWG18-BWG21 |
| 3/4'' x 3/4'' | 19.1mm x 19.1mm | BWG16-BWG21 |
| 1'' x 1/2'' | 25.4mm x 12.7mm | BWG16-BWG21 |
| 1-1/2'' x 1-1/2'' | 38mm x 38mm | BWG14-BWG19 |
| 1'' x 2'' | 25.4mm x 50.8mm | BWG14-BWG16 |
| 2'' x 2'' | 50.8mm x 50.8mm | BWG12-BWG16 |
| Technical Note: 1,Standard Roll Length: 30m; Width: 0.5m to 2.0m 2,Packing: In waterproof paper in rolls. Custom Sizes and Package available at request |
||

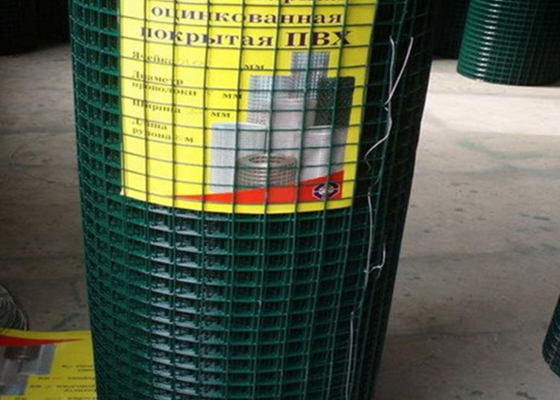

| PVC Coated Welded Mesh: | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4"x1/4" | 6.35mx6.35mm | 21,22,23,24,24,25 |
| 1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21 |
| 3/4"x3/4" | 19mmx19mm | 16,17,18,19,20,21 |
| 1"x1" | 25.4mmx25.4mm | 15,16,17,18,19,20 |
|
Technical Note: 1.Standard roll length:30m;width:0.5m to 2.5 |
||
Welded Wire Mesh with excellent corrosion resistance and oxidation resistance, is extensively used as fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
|
|
