| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

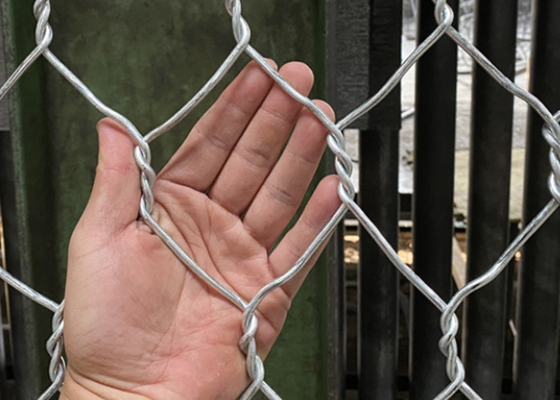

Gabion basket is also called gabion box, gabion wall, gabion cage, hexagonal gabion, gabion retaining wall and so on. It is a large cage made by hexagonal wire netting, it can be filled by stones, the wire material is high quality galvanized carbon steel, it is strong enough to protect road, river wall or forward operating bases.
Slope support, foundation pit support, mountain rock face hanging net spray, slope planting (greening), railway expressway isolation barrier, it can also be used as stone cages, stone mats for rivers, dams and seawalls Anti-scour protection and stoning cages for reservoirs and river closures.
Specification | |||
Opening (mm) | Wire Diameter (Metal Wire) (mm) | Wire Diameter (PVC Coate)/ lnner/Outside(mm) | Strands |
60X80 | f2.0-2.8 | f2.0/3.0-2.5/3.5 | 3 |
80X100 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
80X120 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3 |
100X120 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3 |
100X150 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3 |
120X150 | f2.0-4.0 | f2.0/3.0-3.0/4.0 | 3 |
Length(M) | Width(M) | Height(M) | Diaphragm(Unit) | Volume(M3) | Tolerance |
2 | 1 | 0.3 | 1 | 0.6 | ±5% |
3 | 1 | 0.3 | 2 | 0.9 | |
4 | 1 | 0.3 | 3 | 1.2 | |
2 | 1 | 0.5 | 1 | 1 | |
3 | 1 | 0.5 | 2 | 1.5 | |
4 | 1 | 0.5 | 3 | 2 | |
1 | 1 | 1 | 0 | 1 | |
1.5 | 1 | 1 | 0 | 1.5 | |
2 | 1 | 1 | 1 | 2 | |
3 | 1 | 1 | 2 | 3 | |
4 | 1 | 1 | 3 | 4 |

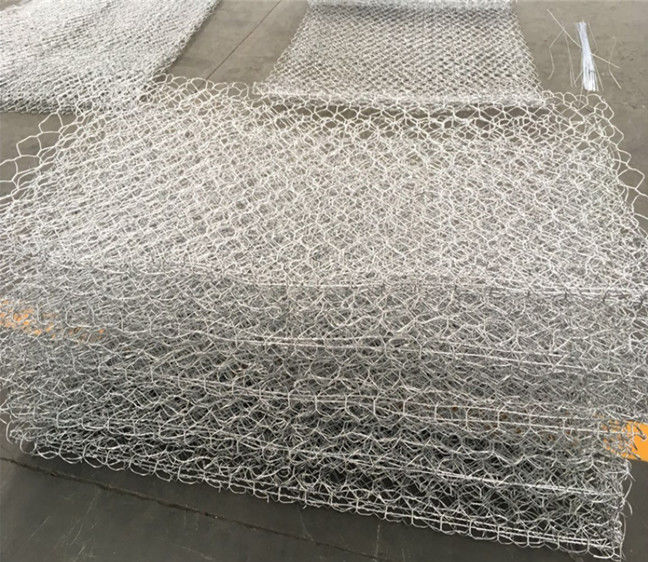

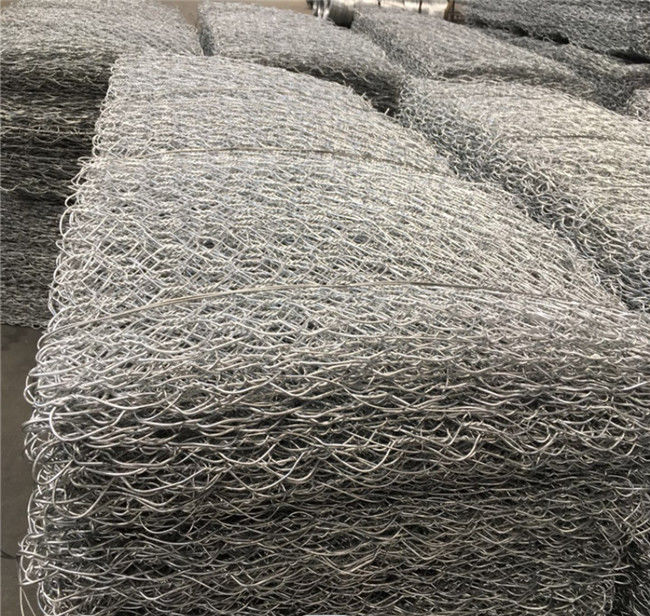

Packing pictures:

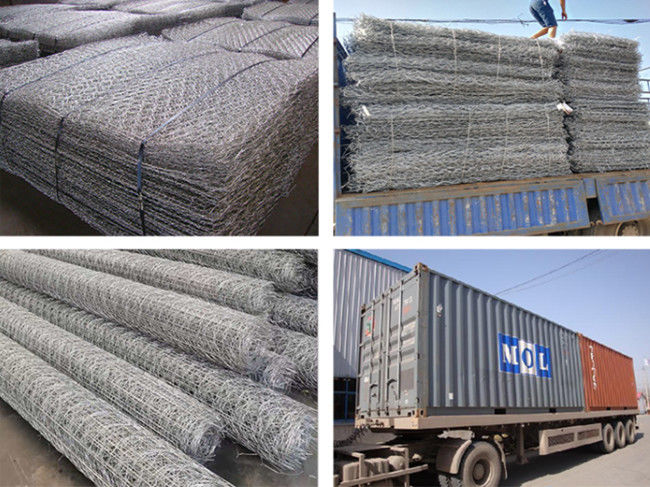

Shipping:
|
|
