| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
1.Cost effective and environmentally friendly alternative to concrete system.
2.The Gabion structure blends easily and harmoniously with natural surroundings.
3.Simple and speedy installation, using natural or quarried stones obtained locally.
4.Ability to deform without cracking allowing the structure to withstand any unpredictable movement or settlement without loss or stability.
5.Higher resistance to natural forces due to better tensile strength.
6.Majority of manpower need not to be skilled and speed at which the work is carried out is unparalleled in civil engineering, besides making it cost effective.
7.Easy of repair to any damaged cages, with minimal expense.
8.The use of Gabions as retaining structures provides a low cost alternative to concrete or masonry retaining walls.
Mesh size and Wire diameter of Galvanized Gabion Box:
|
Mesh Size |
Galvanized Gabion( Dia.mm) |
PVC Gabion (Inside Dia/Outside Dia.mm) |
|
60x80mm |
Φ2.0-2.8 |
Φ2.0/3.0-2.8/3.8 |
|
80x100mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
|
80x120mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
|
100x120mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
|
100x150mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
|
120x150mm |
Φ2.7-4.0 |
Φ2.7/3.7-3.5/4.5 |
| Length (m) | Width (m) | Height (m) | Spacer number | Volume (m2) | Tolerance range |
| 2.0 | 1.0 | 0.15---0.3 | 1 | 0.3~0.6 | Length :±/-3% Width :±/-5% Height :±/-5% |
| 3.0 | 1.0 | 0.15---0.3 | 2 | 0.45~0.9 | |
| 4.0 | 1.0 | 0.15---0.3 | 3 | 0.6~1.2 | |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |
| 1.5 | 1.0 | 1.0 | 0 | 1.5 | |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 |
Shipping:

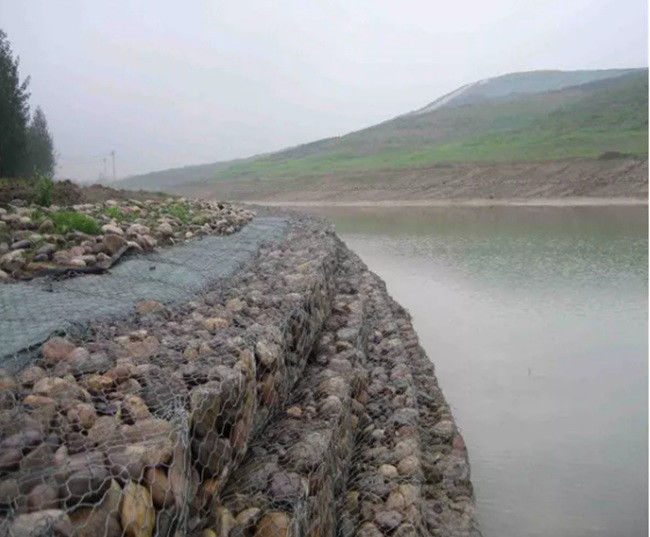

• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road
|
|
