| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

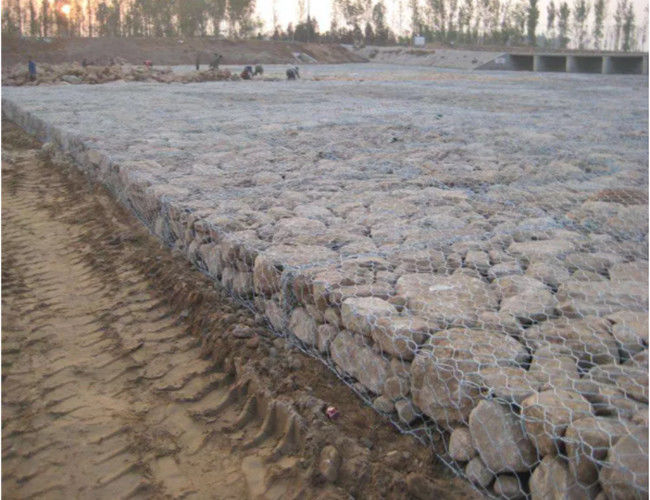

Gabion Mattresses serves as a retaining wall, providing various prevention and protection works such as landslide prevention, erosion and scour protection as well as various type of hydraulic and coastal protection for river, sea and channel protection. This Gabion Mattress System is made up of a specially designed composite in order to maximize its performance through three phases of vegetative process from unvegetated to vegetation establishment up to vegetation maturation.
Material:hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion. PVC coated Wire, PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
opening: 6*8cm,8x10cm,10*12cm
mesh wire :2.2mm,2.7mm,3.0mm
Dimensions of Galvanized Gabion Box:

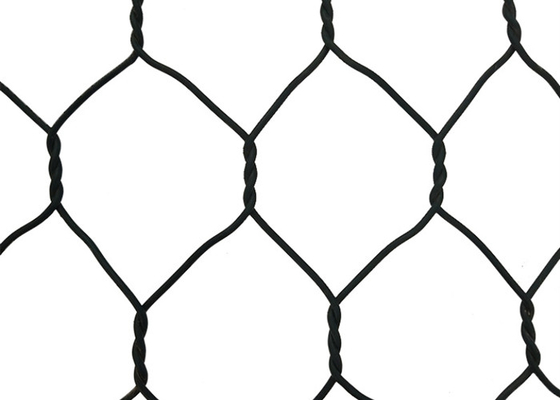

A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
|
Mesh(mm)
|
Wire Dia(mm)
|
Wire Dia(PVC Coated)Inner/outside(mm)
|
Strands
|
|
60x80
|
2.0-2.8
|
2.0/3.0-2.5/3.5
|
3
|
|
80x100
|
2.0-3.2
|
2.0/3.0-2.8/3.8
|
3
|
|
80x120
|
2.0-3.2
|
2.0/3.0-2.8/3.8
|
3
|
|
100x120
|
2.0-3.4
|
2.0/3.0-2.8/3.8
|
3
|
|
100x150
|
2.0-3.4
|
2.0/3.0-2.8/3.8
|
3
|
|
120x150
|
2.0-4.0
|
2.0/3.0-3.0/4.0
|
3
|
|
Length
(m) |
Width
(m) |
Height
(m) |
Diaphragm
|
Volume
(m3) |
Tolerance
|
|
2.0
|
1.0
|
0.3
|
1
|
0.6
|
L:+/-3%
W:+/-5%
H:+/-5%
|
|
3.0
|
1.0
|
0.3
|
2
|
0.9
|
|
|
4.0
|
1.0
|
0.3
|
3
|
1.2
|
|
|
2.0
|
1.0
|
0.5
|
1
|
1.0
|
|
|
3.0
|
1.0
|
0.5
|
2
|
1.5
|
|
|
4.0
|
1.0
|
0.5
|
3
|
2.0
|
|
|
1.0
|
1.0
|
0.5
|
0
|
0.5
|
|
|
1.0
|
1.0
|
1.0
|
0
|
1.0
|
|
|
2.0
|
1.0
|
1.0
|
1
|
2.0
|
|
|
3.0
|
1.0
|
1.0
|
2
|
3.0
|
|
|
4.0
|
1.0
|
1.0
|
3
|
4.0
|
Shipping:
|
|
