| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | on pallet |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Each gabion is constructed of rugged high tensile wire which is coated with a thick corrosion-resistant layer of zinc. The wire is also available with a tough, durable PVC coating. The use of high quality materials results in a longer, more reliable gabion life. Welded Wire Gabions are supplied from stock in a complete range of sizes. Non-typical sizes to fit your unique site conditions are also available upon request.The welded mesh gabions is made from electric welded wire mesh panels connected by spirals/helicals assembled with spacers/stiffeners.
Specifications of Galvanized Gabion Box:
|
Material
|
Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
|
|||
|
Wire Diameter
|
3 mm-6 mm
|
|||
|
Aperture
|
50*50 mm, 50*100 mm etc
|
|||
|
Gabion Box Size
|
100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
|
|||
|
Finish
|
Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated.
|
|||
|
Normal Box Size(cm)
|
Diaphragms
|
Capacity (m3)
|
Mesh Size(mm)
|
|
|
100x30x30
|
None
|
0.09
|
50×50 or 100×50
|
|
|
100x50x30
|
None
|
0.15
|
||
|
100x100x50
|
None
|
0.5
|
||
|
100x100x100
|
None
|
1
|
||
|
150x100x50
|
1
|
0.75
|
||
|
150x100x100
|
1
|
1.5
|
||
|
200x100x50
|
1
|
1
|
||
|
200x100x100
|
1
|
2
|
||
|
Other sizes can be customized.
|
||||

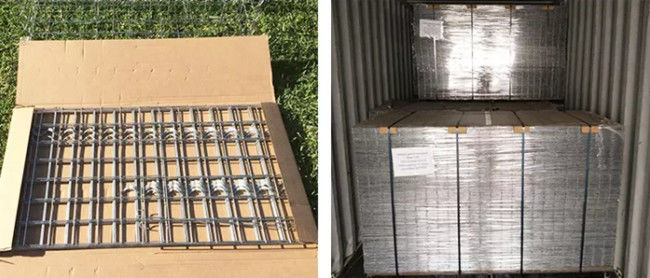

Packing and Shipping:

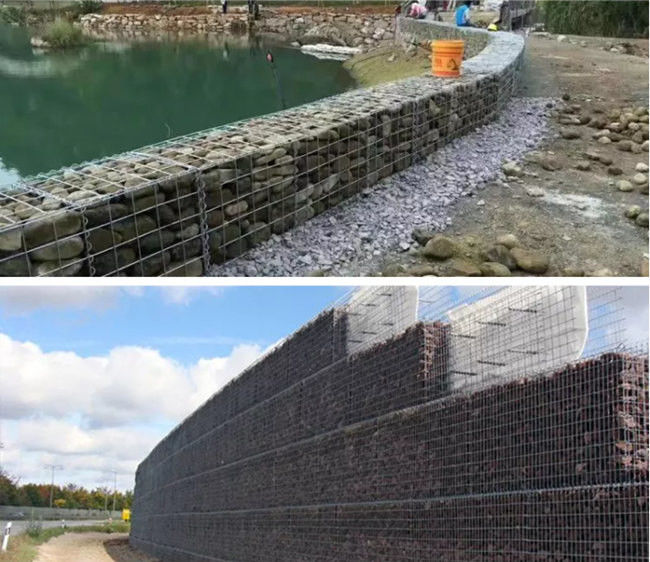

1.)Flood discharge and lead flow
2.)Rock fall defending
3.)Preventing the water and soil lost
4.)Protecting the bridge
5.)Landscape gabion wall
6.)Seashore recovery project
7.)Seaport project
8.)Gabion retaining wall
9.)Defending the road
|
|
