| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | on pallet |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

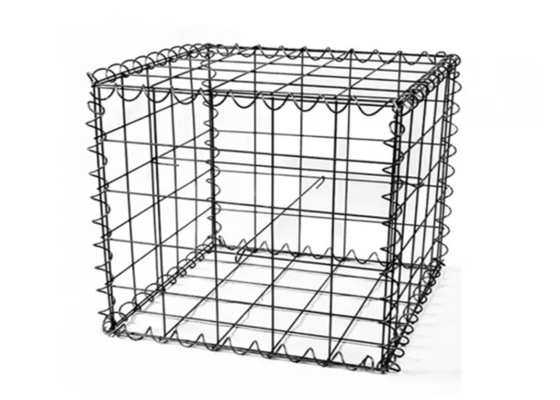

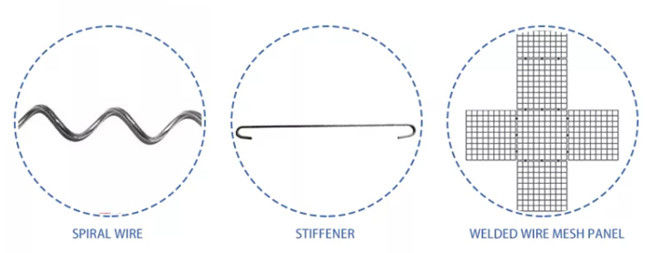

Each gabion is constructed of rugged high tensile wire which is coated with a thick corrosion-resistant layer of zinc. The wire is also available with a tough, durable PVC coating. The use of high quality materials results in a longer, more reliable gabion life. Welded Wire Gabions are supplied from stock in a complete range of sizes. Non-typical sizes to fit your unique site conditions are also available upon request.The welded mesh gabions is made from electric welded wire mesh panels connected by spirals/helicals assembled with spacers/stiffeners.
Specifications of Galvanized Gabion Box:
|
Normal Box sizes (m)
|
NO. of diaphragms (pcs)
|
Capacity ( m 3)
|
|
0.5 x 0.5 x 0.5
|
0
|
0.125
|
|
1 x 0.5 x 0.5
|
0
|
0.25
|
|
1 x 1 x 0.5
|
0
|
0.5
|
|
1 x 1 x 1
|
0
|
1
|
|
1.5 x 0.5 x 0.5
|
0
|
0.325
|
|
1.5 x 1 x 0.5
|
0
|
0.75
|
|
1.5 x 1 x 1
|
0
|
1.5
|
|
2 x 0.5 x 0.5
|
1
|
0.5
|
|
2 x 1 x 0.5
|
1
|
1
|
|
2 x 1 x 1
|
1
|
2
|
|

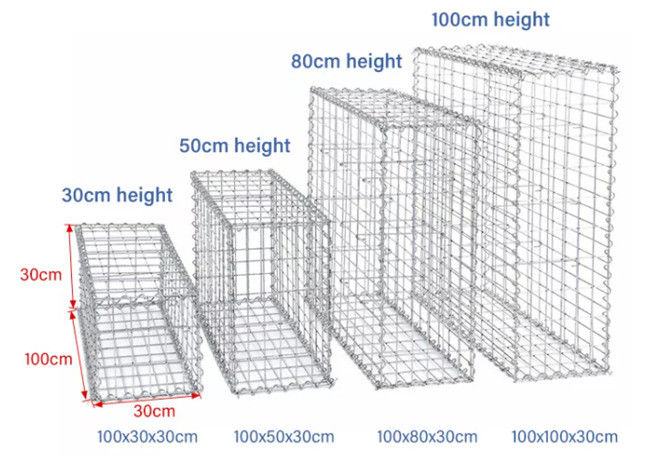

This table refers to the industry standard unit sizes; non-standard unit sizes are available in dimensions of multiples of the mesh opening
|
||
| Corrosion Protection | Galvanized | 95% Zinc + 5% Alu | PVC Coated |
| Mesh Size |
50.8 x 50.8mm 76.2 x76.2mm |
50.8 x 50.8mm 76.2 x76.2mm |
50.8 x 50.8mm 76.2 x76.2mm |
| Unite Size | Wire Diameter | Wire Diameter | Wire Diameter |
| 1 x 1 x 1m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 2 x 1x 1m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 3x 1 x 1m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 4 x 1 x 1m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 1 x 1 x 0.5m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 2 x 1x 0.5m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 3x 1 x 0.5m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 4 x 1 x 0.5m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
Packing and Shipping:

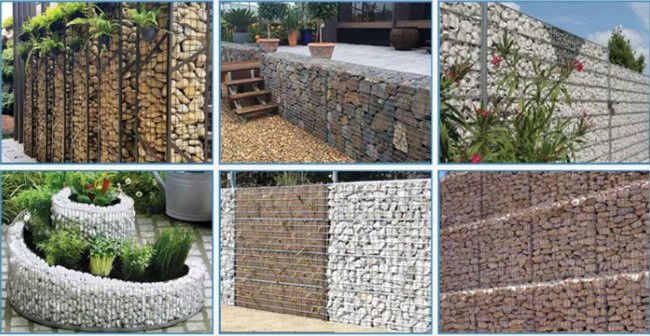

It can be used as a breeding net, stadium protection fence, training ground protection fence, slope protection, green fence, river channel, construction, residential area security protection, workshop warehouse isolation and so on.
|
|
