| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle or bulk |
| Delivery Period: | 10-20 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 3000 pcs per day |

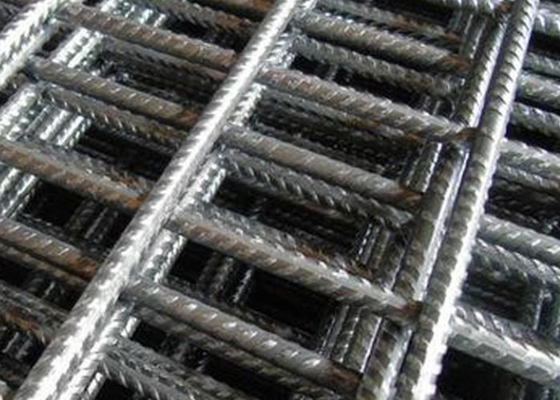

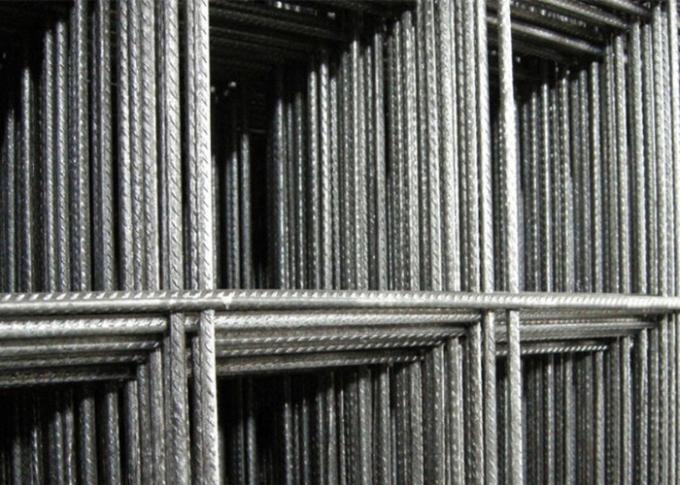

Concrete Reinforcing Mesh also known as steel reinforcing mesh, welded wire fabric, ribbed steel bars welded mesh and so on. Be
made from cold reduced Wire or cold rolled ribbed bars(CRB550) , It is in the same or different diameters of the vertical and
horizontal steel bars , and has a rectangular or square apertures and is produced in flat sheets.
It is used to provide tensile strength and crack control to structural concrete elements.
|
Wire diameter
|
6mm-26mm
|
|
Material
|
Low carbon steel rod
|
|
Length
|
According to your reques
|
|
Width
|
According to your reques
|
|
Usage
|
Road, bridge and tunnel,building
|
|
Hole shape
|
Rectangle,Square
|
|
Mesh opening
|
10*10 15*15 20*20(mm)
|
|
Features
|
High tension strength
|
| Ref No. | Std Unit |
Longitudinal Wires (mm) |
Edge Wires (mm) |
Cross Wires (mm) |
Mass (Kg) |
| SL81(F81) | Sheet | 7.6@100 | 7.60@100 | 7.60@200 | 105 |
| SL102(F102) | Sheet | 9.5@200 | 6.75@100 | 9.50@200 | 80 |
| SL92(F92) | Sheet | 8.6@200 | 6@100 | 8.60@200 | 66 |
| SL82(F82) | Sheet | 7.6@200 | 5.37@100 | 7.60@200 | 52 |
| SL72(F72) | Sheet | 6.75@200 | 4.77@100 | 6.75@200 | 41 |
| SL62(F62) | Sheet | 6@200 | 4.77@100 | 6@200 | 33 |
| SL52(F52) | Sheet | 4.77@200 | 4.77@100 | 4.77@200 | 21 |
Slab on Grade reinforcement
Floor and Walls Systems
Topping Slabs
Architectural precast wall panels
Tilt-up construction wall systems
Shear walls
Retaining walls
Mechanically Stabilized Earth (M.S.E.) reinforcement
Pictures of Workshop and Loading:
|
|
