Bs 4483 Standard High Tensile Concrete Reinforcement Welded Wire Mesh 4.8m X 2.4m

Name: Bs 4483 Standard High Tensile Concrete Reinforcement Welded Wire Mesh 4.8m X 2.4m
Brand: HBGB
SKU: GB-005
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (138 reviews)

MOQ:	100pcs
Price:	negotiable
Standard Packaging:	in bundle or bulk
Delivery Period:	10-20 days
Payment Method:	L/C, T/T
Supply Capacity:	3000 pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HBGB

Certification

ISO 9001

Model Number

GB-005

Product Name:

Concrete Reinforcement Welded Wire Mesh

Material:

Cold Rolled Steel. Hot Rolled Steel

Aperture:

Customized

Wire Diameter:

4-9mm

Standard:

BS 4483 Standard

Panel Size:

4.8m X2.4m

Other Panel Dimension:

1.8 X 3 M, 2.15 X 3 M

Customized:

Available

Application:

Construction Wire Mesh

Color:

Silver

Minimum Order Quantity:

100pcs

Price:

negotiable

Packaging Details:

in bundle or bulk

Delivery Time:

10-20 days

Payment Terms:

L/C, T/T

Supply Ability:

3000 pcs per day

High Light:

bs 4483 concrete reinforcement welded wire mesh

4.8m x 2.4m concrete reinforcement welded wire mesh

high tensile welded wire concrete mesh

Product Description

BS 4483 Standard High Tensile Concrete Reinforcement Welded Wire Mesh 4.8m X 2.4m

Concrete Reinforcement Welded Wire Mesh Introduction:

Reinforcing welded wire mesh is a welded wire fabric, prefabricated steel reinforcement material.
The fabric is used to provide tensile strength and crack control to structural concrete elements.

It's made of Deformed Steel Bars or Steel Rod.

The fabric is used to provide tensile strength and crack control to structural concrete elements.

Bs 4483 Standard High Tensile Concrete Reinforcement Welded Wire Mesh 4.8m X 2.4m 0

Advantages of Concrete Reinforcement Welded Wire Mesh:

concrete rebar reinforcing welded mesh australian standard reinforcing mesh is a convenient and cost effective alternative to conventional bar reinforcement for the following reasons:
1. The mesh is generally specified and manufactured according to standard references making for easy site identification, quality control and management.
2.The mesh is manufactured in sheets or rolls resulting in a quick and simple site installation process.

Concrete Reinforcement Welded Wire Mesh Applications:

· Concrete footpaths

· Industrial and commercial ground slabs

· Precast Panel construction

· Residential slabs and footings

Bs 4483 Standard High Tensile Concrete Reinforcement Welded Wire Mesh 4.8m X 2.4m 1

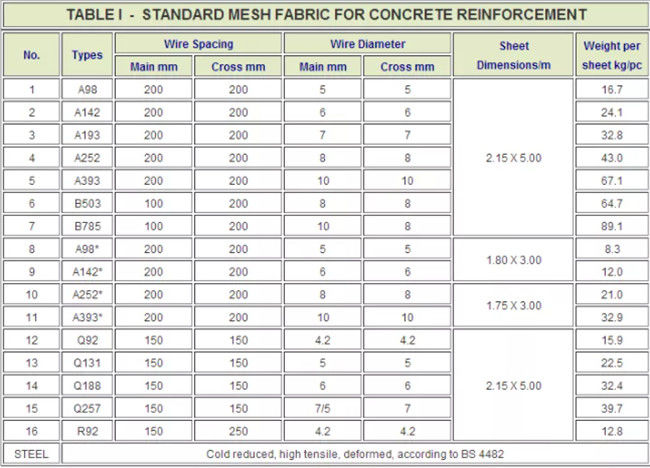

Concrete Reinforcement Welded Wire Mesh Specifications:

1) German standard DIN 488( Size: 2150x5000mm)

Bs 4483 Standard High Tensile Concrete Reinforcement Welded Wire Mesh 4.8m X 2.4m 2

2) Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400m)

Ref No.	Std Unit	Longitudinal Wires(mm)	Edge Wires(mm)	Cross Wires(mm)	Mass(Kg)
SL81 (F81)	Sheet	7.6 @ 100	7.60 @ 100	7.60 @ 100	105
SL102 (F102)	Sheet	9.5 @ 200	6.75 @ 100	9.50 @ 200	80
SL92 (F92)	Sheet	8.6 @ 200	6 @ 100	8.60 @ 200	66
SL82 (F82)	Sheet	7.6 @ 200	5.37 @ 100	7.60 @ 200	52
SL72 (F72)	Sheet	6.75 @ 200	4.77 @ 100	6.75 @ 200	41
SL62 (F62)	Sheet	6 @ 200	4.77 @ 100	6 @ 200	33
SL52 (F52)	Sheet	4.77 @ 200	4.77 @ 100	4.77 @ 200	21

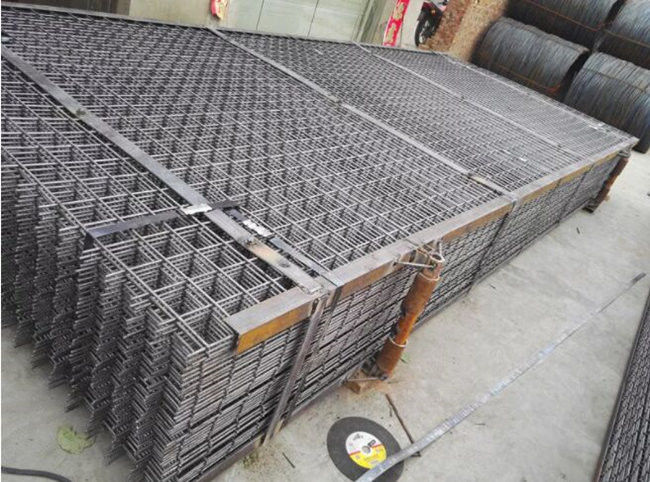

Pictures of product:

Bs 4483 Standard High Tensile Concrete Reinforcement Welded Wire Mesh 4.8m X 2.4m 3

Bs 4483 Standard High Tensile Concrete Reinforcement Welded Wire Mesh 4.8m X 2.4m 4
