| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle, by pallet, wooden case or customized |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000pcs per day |

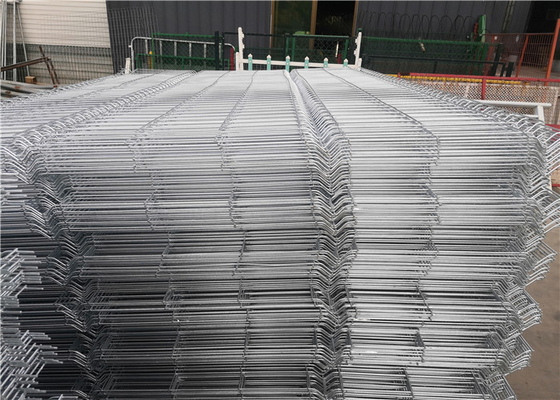

The welded wire mesh fence panels could be 4 curvy, 3 curvy, 2 curvy according to the height of the mesh fence, and which are available in a range of heights from 1030 to 2500mm and have a width of 2500 to 3000mm.
| Materail | Low-carbon iron wire,iron wire,galvanized steel wire |
| Color | Silver,galvanized,dark green or as your requirement. |
| Opening | 50x200mm / 55x200mm / 50x150mm / 55x100mm or as your requirement |
| Wire Diameter | 3-5mm or as your requirement |
| Surface treatment | Hot dipped galvanized;Hot dipped galvanized then PVC coated;hot dipped galvanized then powder coated;electro galvanized;electro galvanized then PVC coated;electro galvanized then powder coated |
| Usage | Industry,agriculture,farming,construction,transportation,mining |
| Packing | Waterproof paper & Shrink film:pallet or as your requirement |
1. Very high rigidity
The panels are extremely rigid due to the heavy wire diameters and the use of specific 3D bend.
2. High degree of security
3D fence is recommended as fencing for applications where security is crucial, resulting from the small mesh and the heavy wires.
3. Long lifetime
The coating technology guarantees an extra high longevity.
After galvanizing a special layer is applied for a perfect adhesion of the polyester coating.
4. Complete system
The 3D fence system includes panels in different mesh apertures and heights, posts with adapted fixation systems and a large range of gates.
All components guarantee a fast and professional installation.
The panels are secured laterally on the posts with specialized fixing made out of metal (security clips). The square posts (50x50mm, or 60X60mm) are covered with a plastic cap. Specifications can be customized.
Fence Posts | Peach Posts | Profile:50×70mm,60×90mm,70×100mm Wall Thickness:1.2mm,1.5mm |
| Square Tube | Profile:50×50mm,60×60mm Wall Thickness 1.5mm-4.0mm | |
| Rectangle Tube | Profile:60×40mm,80×40mm Wall Thickness:1.5mm-4.0mm | |
| Round Pipe | Profile:φ48,φ60,φ75 Wall Thickness:1.5-3.2mm | |
| Post Height | According to fence panel height(Normal 0.65-4m) | |
| Finish | Galvanized and Electrostatic polyester powder coated | |
| Accessories | post cap, clamps, bolts and nuts,etc. |
Panel height | Panel length | Wire diameter | Mesh size | Curves |
0.63m | 2.0m 2.5m 3.0m | Galvanized+PVC painted 3.85mm/4.0mm 4.85mm/5.0mm Galvanized+PVC coated 3.0mm/4.0mm 4.0mm/5.0mm | 50*150mm 50*200mm 55*100mm 55*200mm | 2 |
1.03m | 2 | |||
1.23m | 2 | |||
1.5m | 3 | |||
1.53m | 3 | |||
1.7m | 3 | |||
1.73m | 3 | |||
1.8m | 4 | |||
1.83m | 4 | |||
2.0m | 4 | |||
2.03m | 4 |
Ideal for Professional fencing of schools, sport stadia, playgrounds, railways public sector, utilities (water, gas, electricity), vulnerable areas, works and warehouses.
|
|
