| MOQ: | 100pcs |
| Price: | negotiable |
| Standard Packaging: | in bundle, by pallet, wooden case or customized |
| Delivery Period: | 10-20days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2000pcs per day |

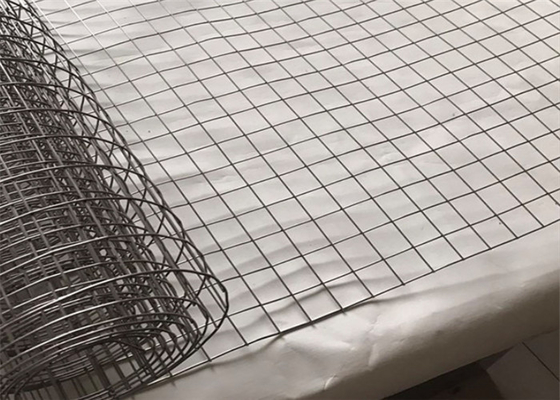

Welded mesh panel is also named Comfortable Plate Mesh Packs. It is used for heat insulation, sound insulation, seismic resistance and water proofing The weight is lighter than other materials. Easy to use. With this new material, the building cost is much lower.
|
SPECIFICATION
|
|
|
Mesh
|
Wire Quage
|
|
1/4'' * 1/4''
|
BWG23
|
|
3/8'' * 3/8''
|
BWG19,20,21,22
|
|
1/2'' * 1/2''
|
BWG16,17,18,19,20,21,22,23,24
|
|
3/4'' * 3/4''
|
BWG16,17,18,19,20,21,22
|
|
1'' * 1/2''
|
BWG16,17,18,19
|
|
1'' * 1''
|
BWG14,15,16,17,18,19,20,21
|
|
1'' * 2''
|
BWG14,15,16
|
|
2'' * 2''
|
BWG14,15,16,18
|
|
1.Guage:#12--#24
2.Mesh:1/8'',1/4'',3/8'',5/8'',1/2'',3/4'',1'' to 6''
3.Width:0.5--2.0m Lehgth:0.5-30m
|
|
PVC coated after welded mesh
Electro galvanized before welded mesh
Electro galvanized after welded mesh
Hot-dipped galvanized before welded mesh
Hot-dipped galvanized after welded mesh
Iron/galvanized wire+pvc coated
Stainless steel 304, 316 wire
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter | |
| In ''inch'' | In Metric Unit (mm) | |
| 1/4'' x 1/4'' | 6.4mm x 6.4mm | BWG22-BWG24 |
| 3/8'' x 3/8'' | 10.6mm x 10.6mm | BWG19-BWG22 |
| 1/2'' x 1/2'' | 12.7mm x 12.7mm | BWG16-BWG23 |
| 5/8'' x 5/8'' | 16mm x 16mm | BWG18-BWG21 |
| 3/4'' x 3/4'' | 19.1mm x 19.1mm | BWG16-BWG21 |
| 1'' x 1/2'' | 25.4mm x 12.7mm | BWG16-BWG21 |
| 1-1/2'' x 1-1/2'' | 38mm x 38mm | BWG14-BWG19 |
| 1'' x 2'' | 25.4mm x 50.8mm | BWG14-BWG16 |
| 2'' x 2'' | 50.8mm x 50.8mm | BWG12-BWG16 |
| Technical Note: 1,Standard Roll Length: 30m; Width: 0.5m to 2.0m 2,Packing: In waterproof paper in rolls. Custom Sizes and Package available at request |
||
| PVC coated welded wire mesh | ||
| Opening | Wire Diameter<BWG> | |
| In ''inch'' | In Metric Unit (mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length: 30m; width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Widely used in industrial, agricultural, construction, transportation and mining industries, such as building insulation wall, protective cover, fence, cage, storage box, decoration, etc.
|
|
