| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Hexagonal mesh gabion is our main products. Hexagonal Double Twisted Wire Mesh is widely used for Civil and Environmental Engineering. It can be divided into two typical type: Gabions and mattress. The steel fabric is made from a zinc or zinc-aluminium alloy, or metallic and polymer coated (PVC). The hexagonal mesh gabion is manufactured in a standard range of wire mesh. The wire mesh is typically supplied in rolls of either 2 or 3 m width x 25 m length.
Material:hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion. PVC coated Wire, PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
opening: 6*8cm,8x10cm,10*12cm
mesh wire :2.2mm,2.7mm,3.0mm
Specifications of Galvanized Gabion Box:
|
Standard mesh and wire sizes
|
||||
|
Mesh Size
|
Diameter of wires (mm)
|
|||
|
Mesh
|
Edge and binding
|
Mesh with PVC
|
Edge and binding with PVC
|
|
|
2.0
|
2.4
|
3.0
|
3.4
|
|
|
2.2
|
2.7
|
3.2
|
3.7
|
|
|
2.4
|
3.0
|
3.4
|
4.0
|
|
|
2.7
|
3.4
|
3.7
|
4.4
|
|
|
80x100
|
2.4
|
3.0
|
3.4
|
4.0
|
|
2.7
|
3.4
|
3.7
|
4.4
|
|
|
3.0
|
3.9
|
4.0
|
4.4
|
|
|
3.4
|
4.4
|
4.4
|
4.4
|
|
|
3.9
|
4.9
|
-
|
-
|
|
|
100x120
|
2.7
|
3.4
|
3.7
|
4.4
|
|
3.0
|
3.9
|
-
|
-
|
|
| Stranded mesh parallel tensile strength | 3500 lbs/ft |
| Stranded mesh vertical tensile strength | 1800 lbs/ft |
| Side wire tensile strength |
1400 lbs/ft
|
| Tensile strength between mesh surfaces |
1400 lbs/ft
|
| Coating strength | 6000 lbs/ft |
Shipping:

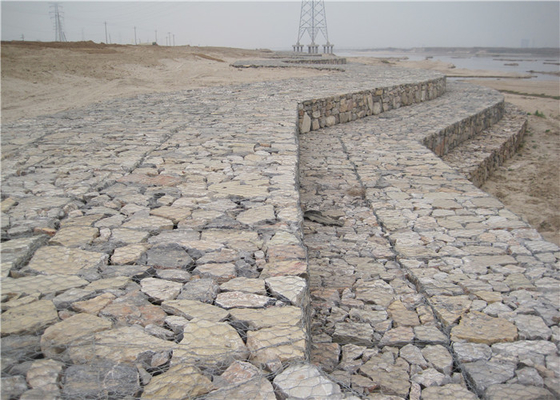

1 Improve the stability of the river channel slope and prevent the raging river from scouring the river bank;
2 providing a predetermined value of the river bank roughness coefficient;
3 Compared with the river bank where the cement is poured, the gabion net pad can protect the ecology.
|
|
