| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |

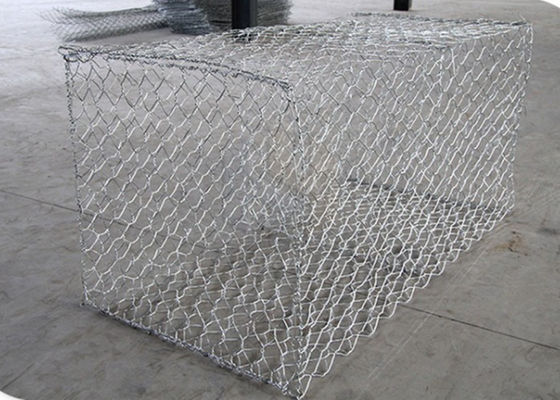

Gabion box are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Flat Gabions, called River or es, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.
|
Product Name
|
Gabion box, gabion cage, gabion basket
|
|||
|
Hole Type
|
Hexagonal
|
|||
|
Production process
|
Three twist / Five twist
|
|||
|
Material
|
GI wire,PVC coated wire,galfan wire
|
|||
|
Wire Diameter
|
2.0mm-4.0mm
|
|||
|
Hole Size
|
60×80mm,80×100mm,100×120mm,120×150mm
|
|||
1. Economical, cheaper
2. Simple installation.No special technology needed.
3. Weather proof under natural destruction, corrosion resistance.
4. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight . It can be folded together for transportation and further installation.
7. No collapse even under big scope of deforming.
Galvanized Gabion Box Specifications:
| Specification Of Gabion box | |||||
|
Gabion size (m) |
Wire diameter | Mesh opening | Surface treatment | ||
|
Mesh wire (mm) |
Selvage wire (mm) |
Tie wire (mm) |
|||
| 2×1×0.5 | 2.0 2.2 2.4 2.7 3.0 |
2.4 2.7 3.0 3.4 3.9 |
1.8 2.0 2.2 |
60 x 80mm 80 x 100mm 80 x 120mm 100 x 120mm 120 x 150mm |
Galvanized Galfan PVC coated PE coated |
| 2×1×1.0 | |||||
| 3×1×0.5 | |||||
| 3×1×1.0 | |||||
| 4×1×1.0 | |||||
| 6×1×1.0 | |||||
| 2×1×0.3(Mattress) | |||||
| 3×1×0.3(Mattress) | |||||
| All sizes can customized according to your request | |||||
Packing & loading pictures:
|
|
