| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabion box are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Flat Gabions, called River or es, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.
1. Parameter and intern ational standard: ASTM A 975-97
2. Weight of galvanized wire:ASTM A-90
3. Strength tensile: ASTM A641-92 ASTM A 975-97
4. Weight of galvanized wire:ASTM A-90
5. Strength tensile: ASTM A641-92
6. Zinc coated weight::ASTM A-239,ASTM B-6
7. Elongation: ASTM A379-92
Galvanized Gabion Mattress Usage:

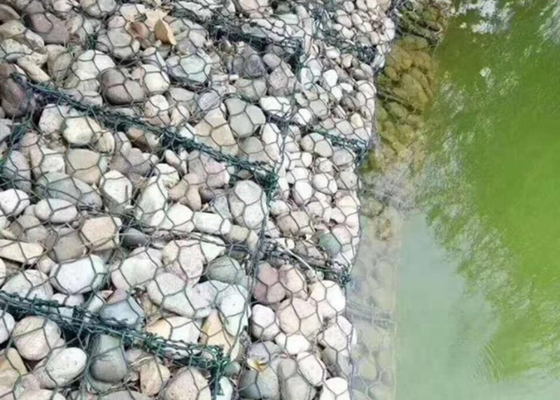

It is used for the scour protection of rivers, dikes and seawalls, as well as cage for the closure of reservoirs and rivers. The most serious disaster of the river is that the water scours the Bank of the river and causes the flood, which leads to a lot of loss of life and property and a lot of soil erosion. Therefore, when dealing with the above problems, the application of the grid ecological grid structure becomes one of the best solutions, which can make the river bed and bank permanent protection.
Galvanized Gabion Box Specifications:
|
Aperture
|
6x8 8x10 10x12 12x15 cm
|
||
|
Mesh Wire diameter(SWG)
|
8- 12 -14 Gauge
|
||
|
Selvedge wire(SWG)
|
8- 11 -13 Gauge
|
||
|
Lacing wire(SWG)
|
Commonly 13 Gauge
|
||
|
Color
|
Darkgreen, gray ,black , etc.
|
||
|
Material
|
Galvanized wire ,galfan wire and PVC coated wire
|
||
|
Common size
|
2m x 1m x 1m,
3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m, |
||
|
Weight
|
1.57kg/m2
|
||
| WIRE MESH | |
| Mesh opening | 60x80mm, 80 x 100 mm, 100x120mm |
| Wire size | 2.0mm, 2.2mm, 2.4mm, 2,7 mm, 3.0mm, 3.2mm, etc. |
| Tolerance | |
| Lenght | ± 3% |
| Width | ± 5% |
| Height | ± 5% |
| Materials | |
| High and hot dipped galvanized low carbon steel wires, galfan(Zn 5%Al), pvc coated | |
| Thickness of pvc coating: 0.5mm | |
Loading pictures:
|
|
