| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabion net is also known as gabion net. Gabion net is generally called ecological green grid in China. In foreign countries, this product is made into a structural box called "gabion". Gabion is the transliteration of the word "gabion", the explanation in the concise English dictionary is: metal basket
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion sizes: 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc
|
gabion box specification
|
|||
|
Gabion box (mesh size):
80*100mm 100*120mm |
Mesh wire Dia.
|
2.7mm
|
zinc coating:60g,245g, ≥270g/m2
|
|
Edge wire Dia.
|
3.4mm
|
zinc coating:60g,245g, ≥270g/m2
|
|
|
Tie wire Dia.
|
2.2mm
|
zinc coating:60g,≥220g/m2
|
|
|
Gabion mattress(mesh size):
60*80mm |
Mesh wire Dia.
|
2.2mm
|
zinc coating:60g, ≥220g/m2
|
|
Edge wire Dia.
|
2.7mm
|
zinc coating:60g,245g, ≥270g/m2
|
|
|
Tie wire Dia.
|
2.2mm
|
zinc coating:60g, ≥220g/m2
|
|
|
special sizes Gabion
are available |
Mesh wire Dia.
|
2.0~4.0mm
|
|
|
Edge wire Dia.
|
2.7~4.0mm
|
||
|
Tie wire Dia.
|
2.0~2.2mm
|
||

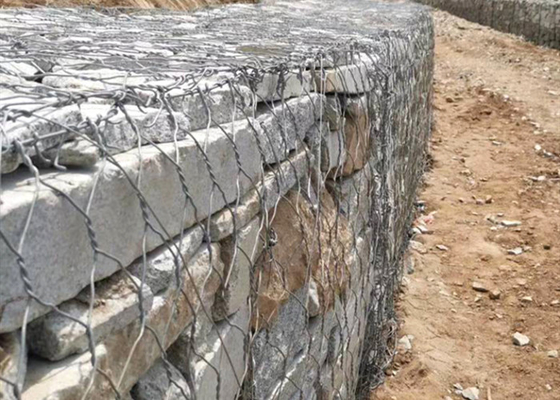

A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
| Length(M) | Width(M) | Height(M) | Diaphragm(Unit) | Volume(M3) | Tolerance |
| 2.00 | 1 | 0.30 | 1 | 0.60 | ±5% |
| 3.00 | 1 | 0.30 | 2 | 0.90 | |
| 4.00 | 1 | 0.30 | 3 | 1.20 | |
| 2.00 | 1 | 0.50 | 1 | 1.00 | |
| 3.00 | 1 | 0.50 | 2 | 1.50 | |
| 4.00 | 1 | 0.50 | 3 | 2.00 | |
| 1.00 | 1 | 1.00 | 0 | 1.00 | |
| 1.50 | 1 | 1.00 | 0 | 1.50 | |
| 2.00 | 1 | 1.00 | 1 | 2.00 | |
| 3.00 | 1 | 1.00 | 2 | 3.00 | |
| 4.00 | 1 | 1.00 | 3 |
4.00
|
Stability: Structure is not easy to be destroyed
Flexibility: Compensation for the basement, if ground is not sustainable.
Durability: Galvanized & PVC coating makes longer lifetime.
Permeability: Special drainage facility is not necessary.
Cost effective: Easy to build.

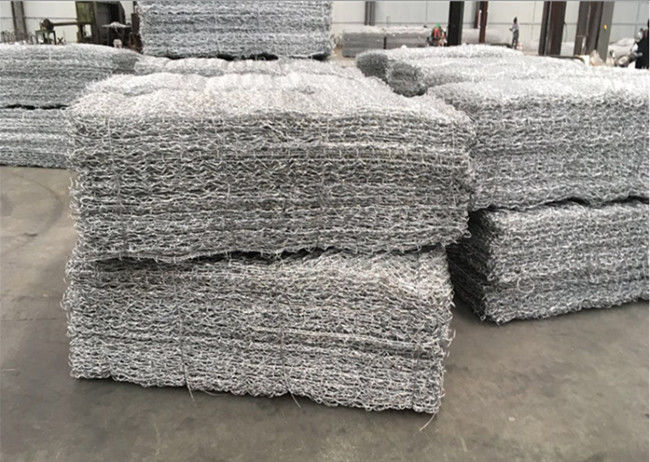

Packing:
|
|
