| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Material:hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion. PVC coated Wire, PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
opening: 6*8cm,8x10cm,10*12cm
mesh wire :2.2mm,2.7mm,3.0mm
Specifications of Galvanized Gabion Box:
| Gabion box Specifications | |||
| Retaining Wall
80x100mm 100x120mm |
Mesh Wire Dia. | 2.7 mm | Zinc coating:>260g/m2 |
| Selveage Wire Dia. | 3.4 mm | Zinc coating: >275g/m2 | |
| Tie Wire Dia. | 2.2 mm | Zinc coating: >240g/m2 | |
|
SackGabion box 60x80mm |
Mesh Wire Dia. | 2.4 mm | Zinc coating: >240g/m2 |
| Selveage Wire Dia. | 2.7 mm | Zinc coating: >260g/m2 | |
| Tie Wire Dia. | 2.2 mm | Zinc coating: >240g/m2 | |
|
Flood Control Customized Size |
Mesh Wire Dia. | 2.0 ~ 4.0 mm | |
| Selveage Wire Dia. | 2.7 ~ 4.0 mm | ||
| Tie Wire Dia. | 2.0 ~2.2 mm | ||
1,Wire straight machine to suitable thickness →
2,surface treatment ,hot-dipped galvanized or PVC →
3,The production equipment use three twist, five twist, positive and negative twist weaving →
4,Cutting machine to mesh cutting →
5,Covered edge worker use tie wire reinforcement→
6,Baler equipment to bundling→
6,Shipping
Shipping:

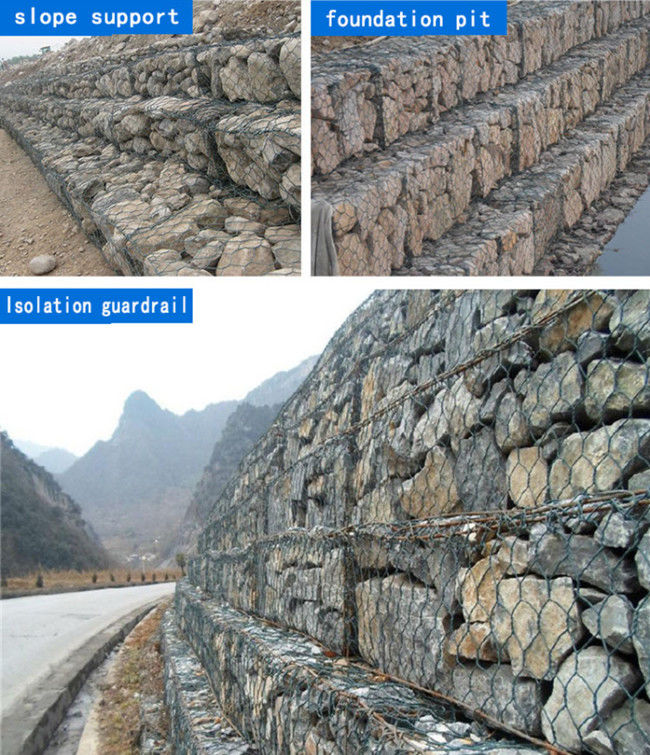

Slope support, foundation pit support, mountain rock face hanging net spray, slope planting (greening), railway expressway isolation barrier, it can also be used as stone cages, stone mats for rivers, dams and seawalls Anti-scour protection and stoning cages for reservoirs and river closures.
|
|
