| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabions are boxes of different sizes – usually 1.00 – 2.00 m wide and 0.50 – 1.50 m tall, made of hexagonal double twisted steel wire. We use their dimensions, length x width x height, to actually specify them. Inside the gabions there are partitions (transverse diaphragms) that help the box retain its shape and avoid deformation during installation process. The edges of the gabion are reinforced with wire of larger diameter than that of the mesh. They have countless uses, such as river bank and other works reinforcement, transverse roads construction and wall retaining, while they easily integrate into the landscape.
Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.
Galvanized Gabion Box Structure:
Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.
Galvanized Gabion Box Specifications:
|
Mesh(mm)
|
Wire Dia(mm)
|
Wire Dia(PVC Coated)Inner/outside(mm)
|
Strands
|
|
60x80
|
2.0-2.8
|
2.0/3.0-2.5/3.5
|
3
|
|
80x100
|
2.0-3.2
|
2.0/3.0-2.8/3.8
|
3
|
|
80x120
|
2.0-3.2
|
2.0/3.0-2.8/3.8
|
3
|
|
100x120
|
2.0-3.4
|
2.0/3.0-2.8/3.8
|
3
|
|
100x150
|
2.0-3.4
|
2.0/3.0-2.8/3.8
|
3
|
|
120x150
|
2.0-4.0
|
2.0/3.0-3.0/4.0
|
3
|
|
Length
(m) |
Width
(m) |
Height
(m) |
Diaphragm
|
Volume
(m3) |
Tolerance
|
|
2.0
|
1.0
|
0.3
|
1
|
0.6
|
L:+/-3%
W:+/-5%
H:+/-5%
|
|
3.0
|
1.0
|
0.3
|
2
|
0.9
|
|
|
4.0
|
1.0
|
0.3
|
3
|
1.2
|
|
|
2.0
|
1.0
|
0.5
|
1
|
1.0
|
|
|
3.0
|
1.0
|
0.5
|
2
|
1.5
|
|
|
4.0
|
1.0
|
0.5
|
3
|
2.0
|
|
|
1.0
|
1.0
|
0.5
|
0
|
0.5
|
|
|
1.0
|
1.0
|
1.0
|
0
|
1.0
|
|
|
2.0
|
1.0
|
1.0
|
1
|
2.0
|
|
|
3.0
|
1.0
|
1.0
|
2
|
3.0
|
|
|
4.0
|
1.0
|
1.0
|
3
|
4.0
|

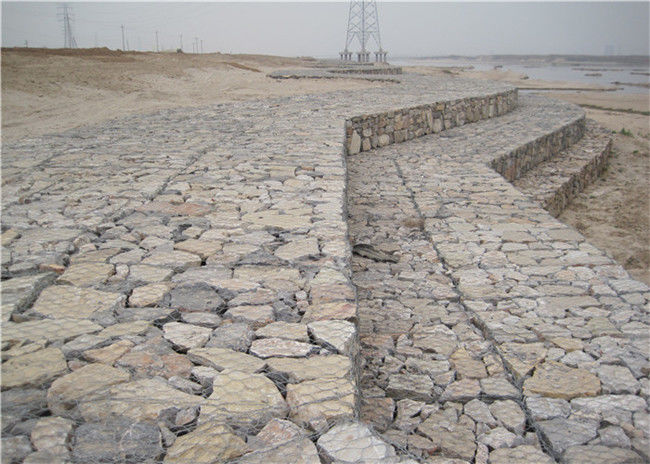

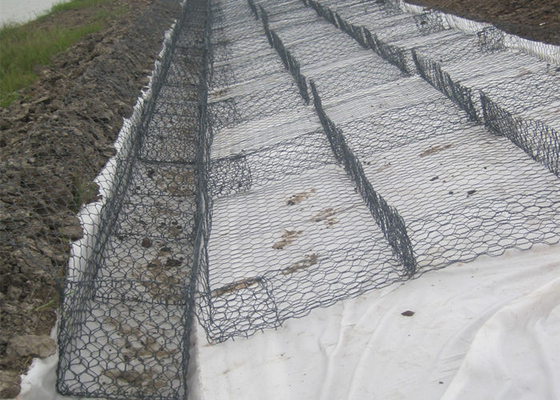

Application pictures:
|
|
