| MOQ: | 100PCS |
| Price: | negotiable |
| Standard Packaging: | compacted before packaging, in bundle |
| Delivery Period: | 10-25days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 1000 pcs per day |
Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
First of all, construction workers will make each piece upright, to ensure that the tablet in an accurate position.
second, gabion lashing the four comes for points can be used to tie banding ligation wire or metal buckle.
Finally, with binding wire or metal buckle to connect together each piece and body.
Specifications of Galvanized Gabion Box:
| gabion specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||
A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
| Length(M) | Width(M) | Height(M) | Diaphragm(Unit) | Volume(M3) | Tolerance |
| 2.00 | 1 | 0.30 | 1 | 0.60 | ±5% |
| 3.00 | 1 | 0.30 | 2 | 0.90 | |
| 4.00 | 1 | 0.30 | 3 | 1.20 | |
| 2.00 | 1 | 0.50 | 1 | 1.00 | |
| 3.00 | 1 | 0.50 | 2 | 1.50 | |
| 4.00 | 1 | 0.50 | 3 | 2.00 | |
| 1.00 | 1 | 1.00 | 0 | 1.00 | |
| 1.50 | 1 | 1.00 | 0 | 1.50 | |
| 2.00 | 1 | 1.00 | 1 | 2.00 | |
| 3.00 | 1 | 1.00 | 2 | 3.00 | |
| 4.00 | 1 | 1.00 | 3 |
4.00
|
Flexibility: Flexibility is an important benefit of any gabion structure. The double-twist hexagonal mesh construction permits it to tolerate differential settlement without fracture. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.
Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability. Generally, the wire mesh is needed for the first few years of the structure’s life; later the void between the stones is filled with soil, silt, and plant roots which act as a bonding agent for the stones.
Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy. This is evident on coast protection installations where gabion structures remain effective long after a massive rigid structure fails. Additionally, the double twisted hexagonal mesh won’t unravel if cut.
Permeability: Gabion walls are previous to water and stabilize slopes by the combined action of draining and retaining, precluding the development of hydrostatic pressure behind the gabion wall. Drainage is accomplished by gravity, as well as evaporation as the porous structure permits air circulation through it. As plant growth develops within the structure, the process of transpiration assists in removing moisture from the backfill – a much more efficient system than weep holes in standard masonry walls.
Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
• It requires little maintenance
• Its installations does not require skilled labor and stone fill is available on site or from nearby quarries,
• It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth.
• Gabions are porous, requiring no costly drainage provision

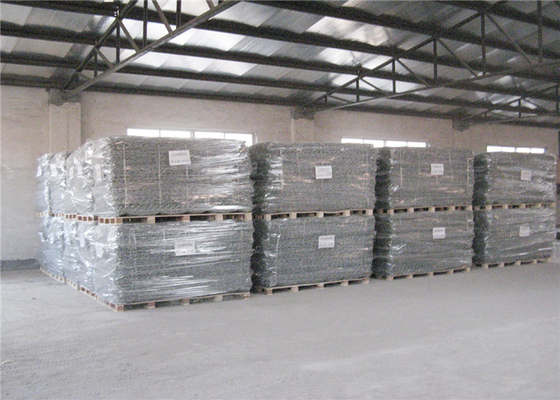

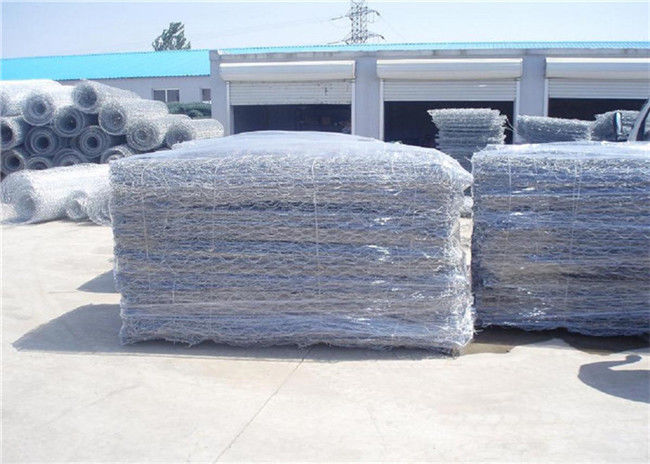

Packing and Shipping:
• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road
|
|
